Small Compact Handheld Pulsed Fiber Laser Cleaning Machine
| Category | Laser Cleaning Machine |
| Model No. | BE-CL100/BE-CL200 |
| Views | 54500 |
| Rating | ★★★★★4.7/5 Based on 1000 Votes |
| Price Range | US$5599-US$9899/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Leading Time | 7-15 Days |
| Shipping | Air/Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
BST pulsed fiber laser cleaning machine adopts the advanced trolley case design, taking into account the protection and portability. Turn on the power, open the front door to take out the laser head, and select the appropriate cleaning mode to achieve cleaning. The laser head is small and light, and weighs less than 0.5kg. It can be widely used in various handheld cleaning scenarios, and can also be linked with equipment such as robotic arm through a quick switching device. The laser beam is thin, which can easily meet various high-precision cleaning needs.
Laser cleaning advantages:
Flexible to use: the laser cleaning head can be cleaned in a fixed position or hand-held.
◆ Compared with traditional cleaning such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, and high-frequency ultrasonic cleaning, laser cleaning is a kind of “green” cleaning. No need any chemicalsor solid powders.
◆ Traditional cleaning is often contact cleaning, which has a mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium is attached to the surface of the object to be cleaned, and cannot be removed, resulting in secondary pollution. Non-contact makes these problems easy;The laser can be transmitted through the optical fiber and cooperate with the robot hand and robot, which can easily realize long-distance operation, and can clean the parts that are difficult to reach traditionally. This can be used in some dangerous places to ensure the safety of personnel;
◆ Laser cleaning can remove various types of contaminants on the surface of various materials and achieve cleanliness that cannot be achieved by conventional cleaning. It can also selectively clean the contaminants on the surface of the material without damaging the surface of the material;
◆ Laser cleaning saves time.
Good Features
◆ 27 inch trolley case control system: built-in laser, laser head and accessories
◆ One-touch operation: advanced user and normal user dual operation interface
◆ International famous brand components
◆ Dual use laser head: handheld and robotic head switch time<5 seconds
◆ Environmental friendly: The most environmental friendly industrial cleaning method
Parts Introduction

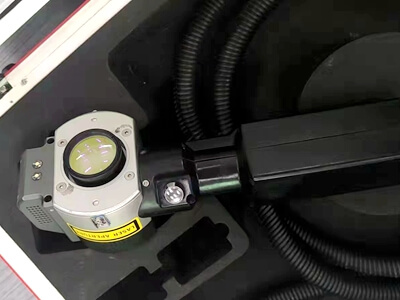

Laser Cleaning Head
- The forth generation dual purpose laser head handheld and automatic 2D laser head
- Easy to hold and integrate with automation
- Easy to operation and has various functions

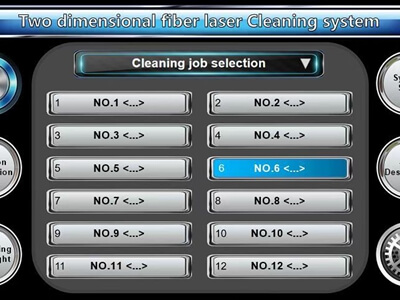

Controlling Software
- Prestore all kinds of parameter graphics, 6 kinds of graphics can be selected: straight line, spiral, circle, rectangle, rectangle filling, circle filling
- Easy to use and operate
- Simple interface
- 12 different modes can be switched and selected quickly to facilitate production and debugging
- China, English and other language needed

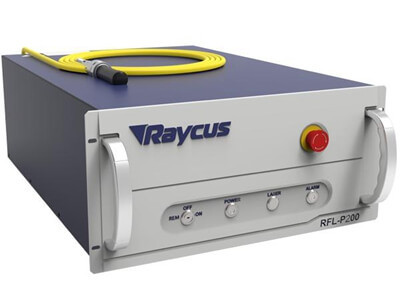

Fiber Laser Source
- With high average power, high single pulse energy, square or round homogenized spot output, easy to use and maintain
- Specially for rust removal, cleaning oil and dirt on metal surfaces, cleaning mold surfaces, cleaning surfaces of objects, removing paint, stripping stone statues, removing attachments on surfaces, removing welding surfaces, and pre-treatment of spraying surfaces

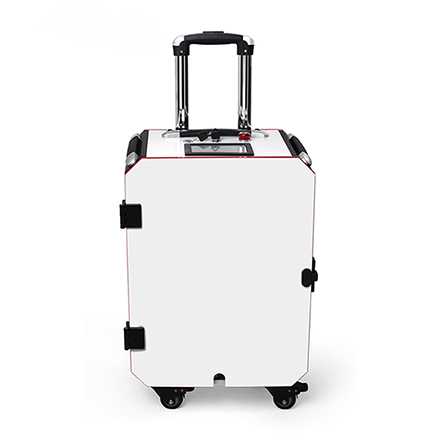

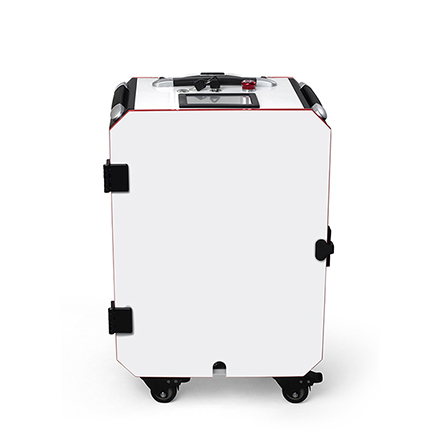

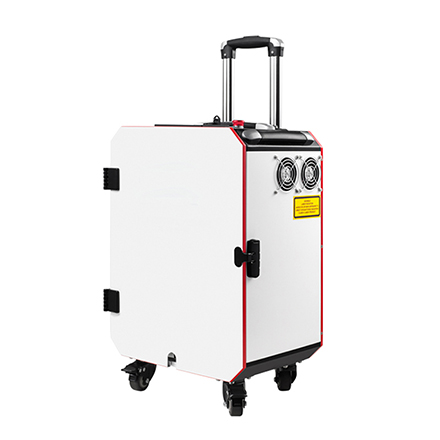

Trolley Case Structure
- 27 inch trolley case design, portable
- Meeting European’s quality standard and safety laws
- Indoor and outdoor use

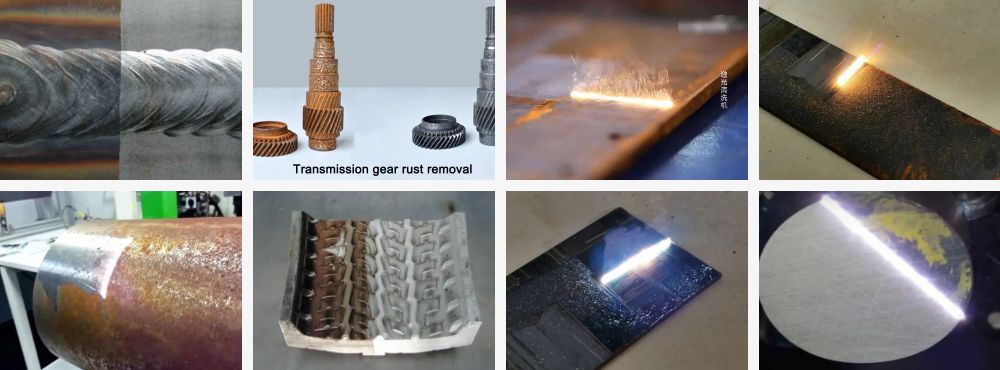

Application
Derusting of metal surface;
Surface paint stripping treatment;
Surface oil, stain, dirt cleaning;
Surface coating, coating removal;
Welding surface/spraying surface pretreatment;
Remove dust and attachments on the surface of stone statues;
Cleaning of rubber mold residues.
| Max Average Power(W) | 100W | 200W |
| Output Central Wavelength(nm) | 1064±5 | 1064±5 |
| Beam Quality(M2) | ≤1.6 | ≤1.8 |
| Power Adjustment Range(%) | 10-100 | 10-100 |
| Output Power Instability(%) | ≤5 | ≤5 |
| Pulse Repetition Rate(kHz) | 20-400 | 20-2000 |
| Pulse Length(ns) | 10/20/30/60/100/200/250/350 optional | 10/30/60/240 optional |
| Max Pulse Energy(MJ) | 1 | 1 |
| Fiber Length(m) | 3 | 3/5 |
| Laser Safety Classification | 4 | 4 |
| Cooling Method | Air cooling | Air cooling |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-CL200 | 0.64m×0.51m×0.78m, 0.25CBM | 100KG |
 |
 |
 |

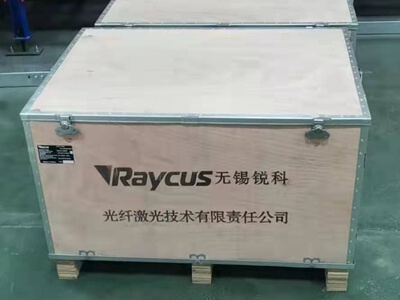

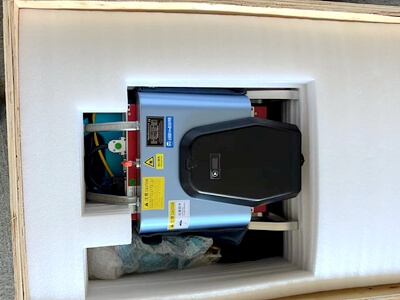

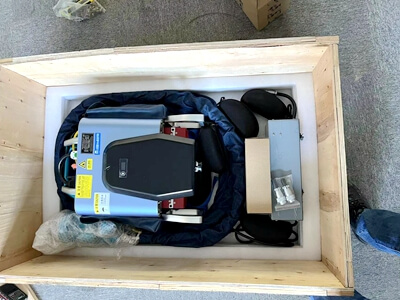

| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
Tony Skaf
★★★★★Post a review on Aug 21, 2022 From Sweden
The rust is clean and no damage. very easy to use. I will come again if I need it later.
-
RUSSELL PIPER
★★★★★Post a review on Aug 21, 2022 From Ireland
Easy to use, rust clean, strongly recommended!
-
Stian Iversen
★★★★★Post a review on Aug 21, 2022 From Norway
In terms of effect, it can be cleaned, with less pollution and environmental protection. In terms of operation, it is very convenient. I am also cement In terms of price, tens of thousands of dollars are not expensive, mainly because it can save a lot of time for workers and masters to polish. Finally, I think it is worth buying. The above is my personal opinion.
-
Aleesha Sayed
★★★★★Post a review on Aug 21, 2022 From Britain
It mainly removes the oxide layer and oil stains on the workpiece, which is more troublesome to deal with traditionally. This laser cleaning machine is very clean and easy to operate, saving labor costs and improving work efficiency. cost-effective!
-
Ivan Lytkin
★★★★★Post a review on Aug 21, 2022 From Russian Federation
The wearing parts are the protective lenses. The rust removal is much faster than manual grinding. The laser can sweep the positions, and the hidden corners can also be removed. The sound is not loud, and the removal is very clean. We are very satisfied!
