Acrylic Wood MDF Co2 Laser Cutting Machine 9060
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK9060 |
| Views | 5822 |
| Rating | ★★★★★4.9/5 Based on 50 Votes |
| Price Range | US$2500 – US$4000/set Based on the Features |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Leading Time | 5-7 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
BST LASER CO2 laser cutting machine 9060V is specially designed for high precision engraving and cutting for small size non-metallic materials. Standard is with 100W laser tube and can be matched with 130W, 150W, 180W laser tubes with extended cover. the perfect optimization of transmission components, rail guide systems and axis motion ensure high-speed and balanced cutting performance. Newly added three-dimensional suction and double blowing anti-fire functions. The software function has been upgraded again and it is more powerful. Optional CCD positioning edge cutting function makes the cutting more convenient and accurate.
Machine Features
◆ Transmission system use Y axis intermediate driving way, imported diaphragm coupling ensure high transmission accuracy.
◆ Standard machine is equipped with industrial cold water system, air blowing system, smoke exhaust system.
◆ Compatible with blades and honeycomb cutting working table to meeting different processing applications. supporting modular lifting platform, meeting more laser processing needs.
◆ Using high-precision Taiwan square linear guide, excellent reduction gear components make low-speed cutting less fluctuating and more stable. Good cutting accuracy is guaranteed.
◆ With all-digital three-phase stepping motor driver and matched motor, the balance of power and torque greatly exceeds the two-phase stepping system on current market.
◆ high-speed interface for data transmission, supports two methods of computer output and U disk import.
◆ Machine supports network transmission and communication based on standard TCP/IP local area network.
◆ Support the function of engraving after power off. If the power is cut off unexpectedly at work, it can continue to work after it is turned on again.
◆ The matching laser tubes are fully upgraded and all use long-life catalytic laser tubes. Laser spot is thin and has a long lifetime, reducing the cost of consumables for customers.
◆ with front and back through design, which is convenient for feeding the whole plate.
Parts Introduction

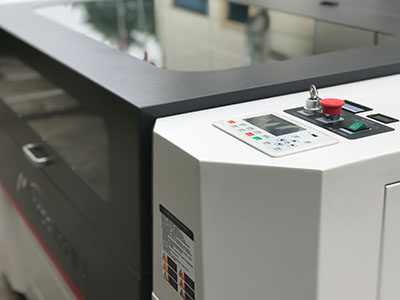

Machine Structure
- One molding, weight 150KG, processed by annealing and digital CNC machine, bearing capacity not easy to deform.
- Frame made of 100*100 metal pipe which makes sure high stability.
Transmission System
- Y-axis middle drive + diaphragm flexible coupling, comparing with common single-side motor installation is more precise, double Y has better synchronization, concentricity is adaptive through flexible coupling.
- Drive system uses imported bearings for perfect work. Three-phase driver and three-phase motor. High speed, high precision, low noise and strong drive.
LCD DSP Offline Control System
- Adopting top China Brand Lastest Ruida Controller with full number keys and other normal function key, making the operation more easier and convenient.
- Supporting 12 kinds of foreign language, communication without barriers.
Control Panel
- With Separate current and voltage display, easily to check whether machine is normal and exact issue.
- Panel Output Voltage is 24V which is more safe too human being.
Three-dimensional Suction System
Bigger Hole Down & Small Hole up, which can absorb smoke and dust during processing effectively.
Belt Transmission
Taiwan ONK brand Transfer Belt (specifications: 5m) with Strong tension and durable.
Auto Exhaust Fan
Only Start During Working, so it can help you save the electricity consumption.
Air Pump
Top China Brand ACO series air pump which can make sure excellent cutting.
Glass Laser Tube
Top Brand Reci Brand with lifetime 10000h. Original label and code on that where client can check offical website.
Reflect Mirros and Lens
- USA imported, global first brand.
- Lens transmission rate is three times than other brand.
- Mirror is a silicon gold dielectric film lens, which is 20% higher than the metal molybdenum mirror
Power Supply
Can supply sufficient laser power to the laser tube. With 5 years long-life span and stable performance.
Laser Cutting Head
The aluminum alloy adjustable laser head is lighter than other metal laser heads, which can minimize the inertia error when the laser head move, and will never deformed in time long run.
Industrial Water Chiller
Adopt CW-5000/CW5200 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
Front and Back Through Design
The unique design with the large plate feeding easily, standard hight is 40cm and other size can be customized.
Application
- Available materials: acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, Gum, Ceramics, etc. nonmetal materials.
- Application Industry: advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
- Material List for Cutting & Engraving
| Material | Engraving | Cutting |
| Acrylic | √ | √ |
| MDF | √ | √ |
| Wood | √ | √ |
| PVC | √ | √ |
| Double Color Board | √ | √ |
| Rubber | √ | √ |
| Leather, Fabric | √ | √ |
| Cloth | √ | √ |
| Paper | √ | √ |
| Stone | √ | × |
| Marble | √ | × |
| Granite | √ | × |
| Stainless Steel | × | × |
| Carbon Steel | × | × |
Optional Items
Double Working Table
- Honeycomb Working Table: Specially designed for engraving function or soft materials engraving cutting (like cloth, leather, silk, fabric, etc).
- Strike Working Table: Mainly used for cutting and heavy materials processing like wood, MDF, plexiglass, acrylic, etc.
CCD Camera System
Auto Nesting+Auto Scanning+Auto position recognition,or cutting printed Picture, like logo, pictures on t-shirt et.
Double Laser Head
The 2 heads can work together or separately which largely improve working efficiency.
| Model | BE-DK9060V |
| Working Area | 900x600MM |
| Laser Power | 100W/130W/150W/180w |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 0-60000MM/S |
| Cutting Speed | 0-10000MM/S |
| Cutting Thickness | 0-25MM Acrylic (Others Determined by Materials) |
| Repeat Location Accuracy | +/-0.0125MM |
| Driving Mode | DC0.8A 24V Stepper Motor |
| Position System | Red Dot |
| Interface | USB |
| Radio | 0.025MM |
| Voltage | AC220V/50HZ or 110V/60HZ or Depend on Customer |
| Minimum Letter | Chinese Character: 2MM, English Letter: 1MM |
| Machine Power | ≤1500W |
| Controlling System | CNC Professional Control System |
| Support Graphics Mode | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, DST, PLT, DXF etc. |
| Cooling Mode | Circulation Water Cooling and Protection System |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Power Control Mode | Laser Energy Combining Movement Control System |
| Software | Professional Laser Engraving & Cutting Software |
| Operating Temperature | 0-45C |
| Operating Humidity: | 5-95% |
| Packing | Standard Wooden Box |
| Operation | Detailed Video to Teach Customer How to Operate the Machine |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-DK9060V | 1.71m×1.3m×1.28m, 2.845CBM | 470KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
