Air Cooling Mini Portable Lightweld 1500 Laser Welding System

Category	Auto Laser Welding Machine
Model No.	BE-WF1500S
Views	55300
Rating	★★★★★4.8/5 Based on 800 Votes
Price Range	US$5599-US$8999/set
Payment Term	T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time	5-7 Days
Shipping	Air/Sea/Train/Truck
Warranty Period	Two Years with Lifelong Free Service

Yes! I am Interested

PRODUCT DETAILS
TECHNICAL SPECIFICATIONS
CUSTOMER TESTIMONIALS

WF series air cooling Lightweld 1500 Laser Welding System developed and produced by self R&D team, Compared with traditional gas and solid-state lasers, it has the advantages of high electro-optical conversion efficiency and high beam quality.

As the coilability of the fiber, the structure of the fiber laser is more compact. This series of products integrates the advantages of high electro-optical conversion efficiency, high output power, superior beam quality, compact structure, maintenance-free, and low cost. It is widely used in metal welding, cutting, and other industrial processing, military defense, scientific research and other fields.

Good Features

◆ New Arrival Mini Small Portable Modularized Design with Weight Only 65KGS

◆ Smallest Dimension:35*67*72CM

◆ Smooth Welding Effect&No Welding Scar&No Deformation

◆ Advanced Air Cooling Reci Fiber Laser Source with Lifetime 100,000 Hours, Almost Free of Maintenance and No Consumables

◆ High Photoelectric Conversion Efficiency&Power Saving

◆ Japanese Imported Mitsubishi Fiber Laser Cable 5M

◆ Self-Design Light Weight Flexible Laser Welding Gun Wobble Range 0-6MM

◆ Built-in Controlling System with Touch Screen&Support 13 Languages

◆ Capable of Continuous Long Time Working Over 24 Hours

◆ Gas Pressure Inspection System

◆ Multiple Safety Protection

◆ French Schneider Electric Components Standard

Parts Introduction

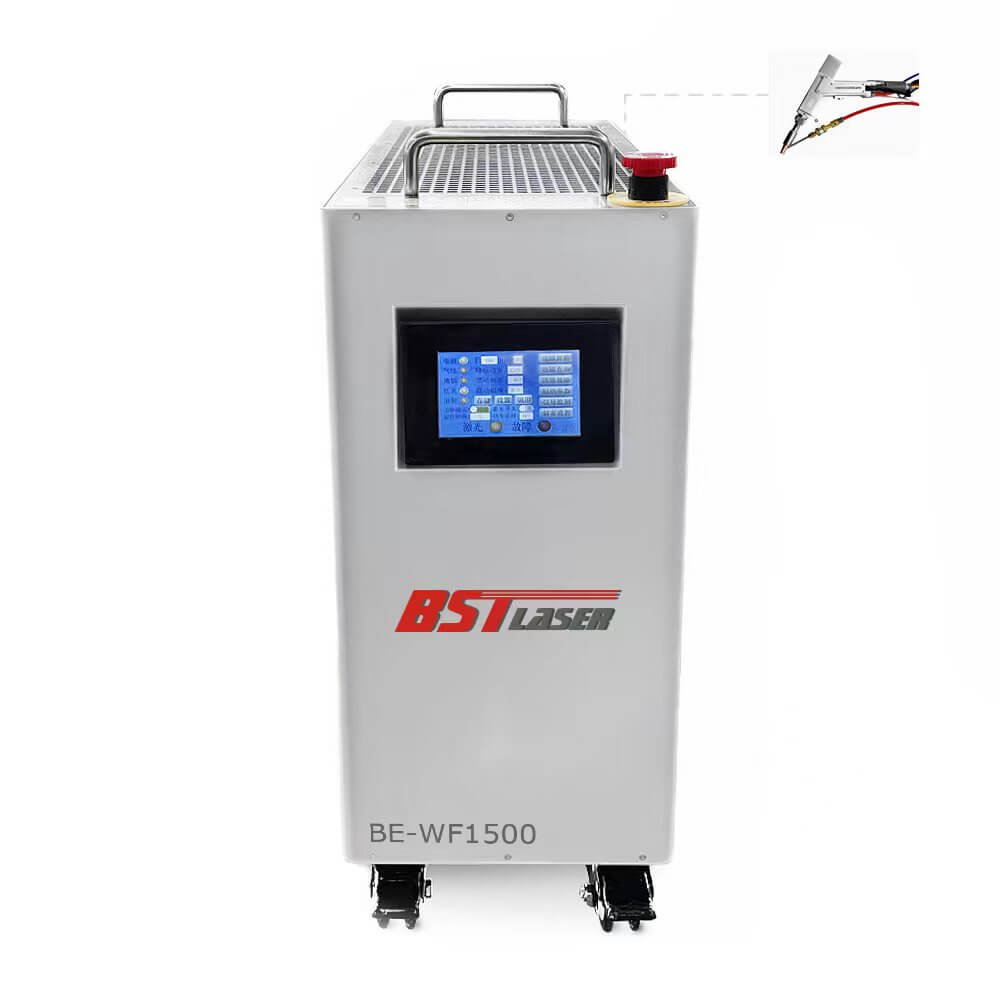

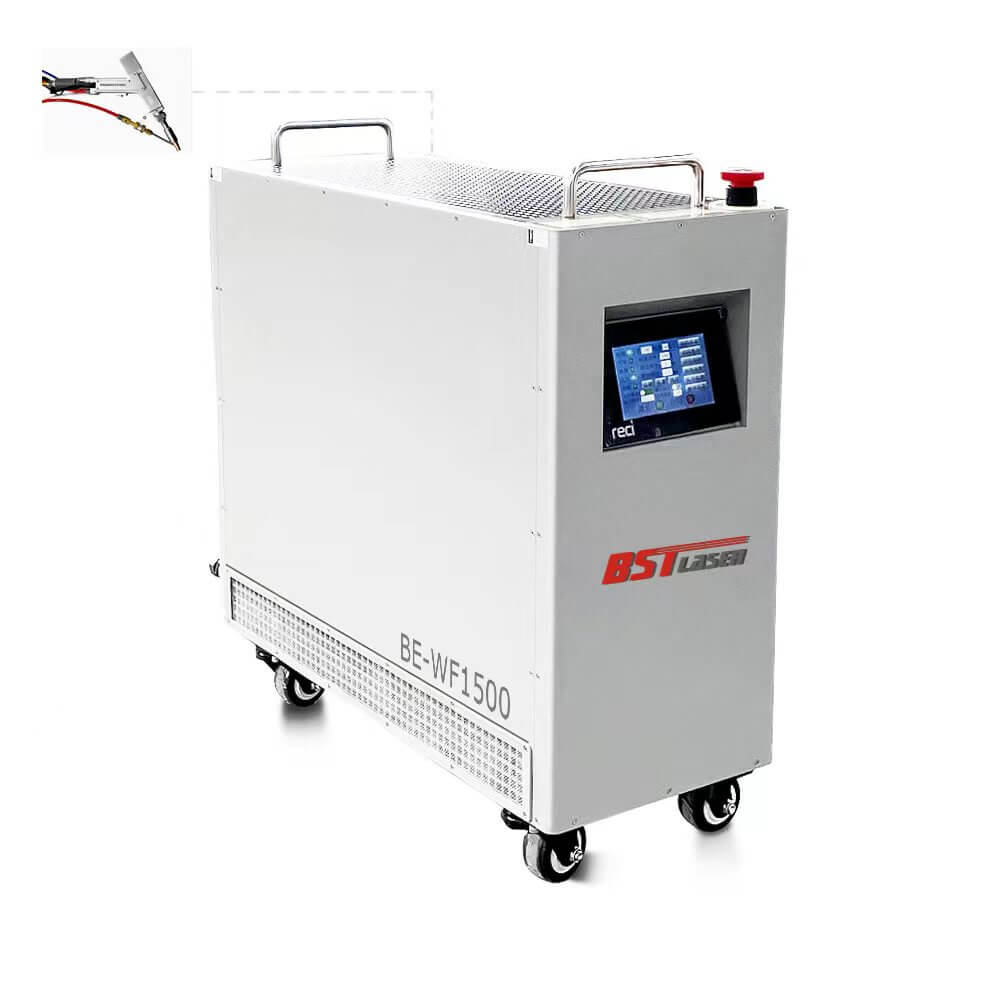

Mini Compact Portable Design with Air Cooling Fiber Laser Source

Light Weight Only 1/4 of Common Handheld Fiber Laser Welder, No Need Water Chiller, Small Dimension, Easy to Carry and Saving Space
Both Outdoor and Indoor Use, Wider Application Usage

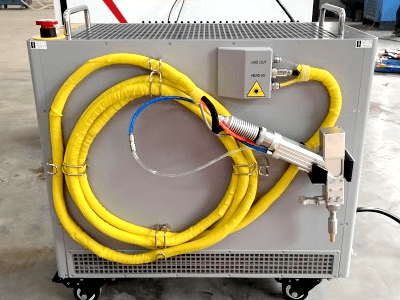

Japanese Imported High Precision Fiber Laser Transmission

Equiped with Japan Imported Fiber Cable, Fast Speed, Stable Beam Transmission, Lest Consumption and Mmost Powerful.
Standard Fiber Cable Length 5M(optional 10M), Which is Preferred for Long Distance Welding.

Intelligent Built-in Controlling System

Multi-Language Touch Screen(Chinese, English, Korea, Russian, Japanese, French, Germany, Latin, Traditional Chinese, Italian, Spanish, Romania, Polish)
3 In 1 Multifunctions(Welding+Cutting+Cleaning)
Parameters Storage Function

Self-Design Handheld Wobble Laser Gun

Multifunctional 3 in 1(Auto Welding+Cutting+Cleaning)
Weight: 0.8kg, Light and Powerful
Adjusted Laser Beam 0.5-6MM
Language: Chinese, English, Korean, Russian, Japanese, French, German, Latin, Traditional Chinese, Italian, Spanish, Romanian, Polish

Air Cooling Fan Ensures Excellent Cooling Effect

Two Big Exhaust Fan On Top, High Speed, Low Noise, Energy Saving and Stable Cooling Performance
No Need Big Water Chiller, Saving Space, Small Compact Size

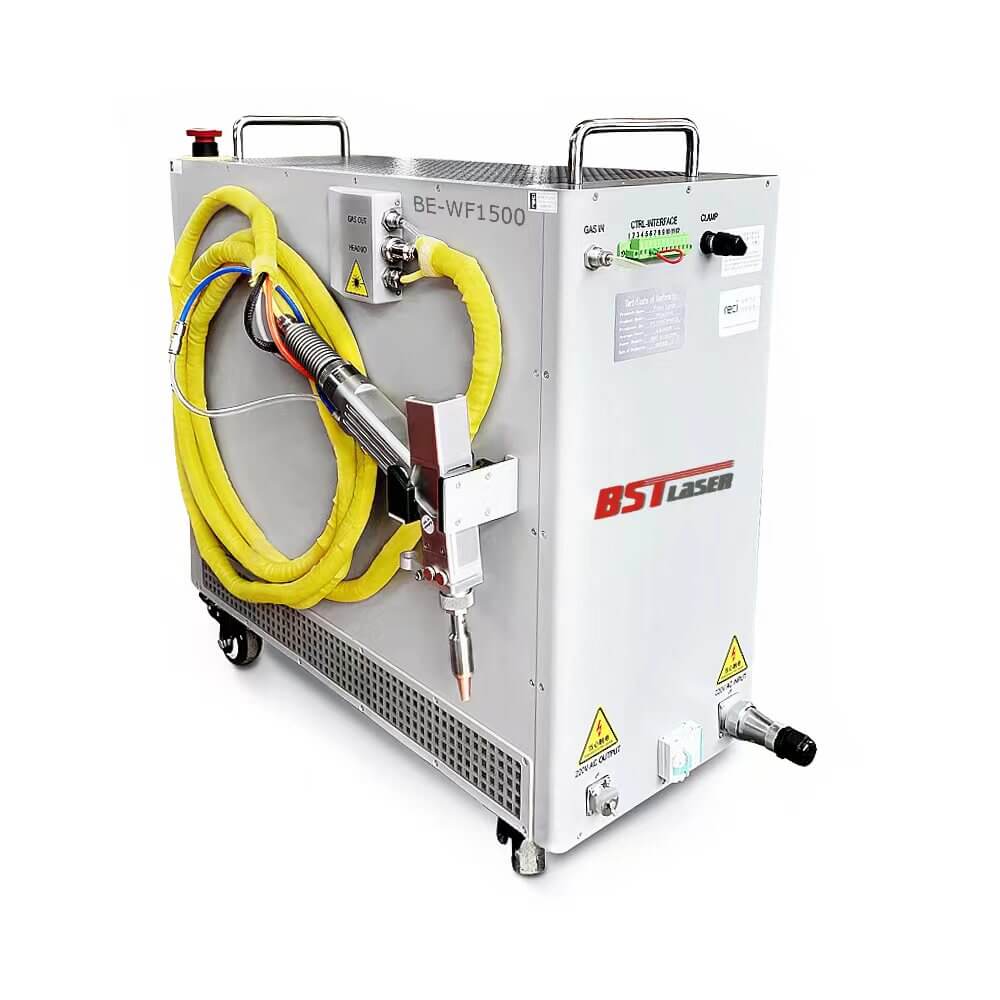

Multi-Safety Protection

Gas Port to Connect with Protection Gas to Ensure Welding Clean.
Multi-Safety Protection&Focusing on Details to Ensure Perfect Working
I/O Signal Port to Connect with Automation System, Such as Robot Arm

Emergency Button Stop

Pressing The Red Emergency Button Once Any Error During Use.
Using Tips on Top to Provide Instructions and Avoid Operation Mistakes.

Integrated Design

Integrated Design, Easy to Storage, No Consumables, Free of Maintenance, No Need Professional Welding Certificate&Skills, Easy the Welding Process and Increasing Efficiency
3-8 Times Faster than Traditional Welding Machine.

LEARN MORE

Application

Sheet metal processing, advertising identification, customized processing of commercial kitchens, welding of stainless steel stoves, barbecue trucks, dining cars, doors and windows, fences, stainless steel furniture lamps, distribution boxes, equipment cabinets and pipes. Suitable for stainless steel, titanium plate, galvanized plate, white iron, titanium steel plate, colored plate, copper plate, aluminum plate and other metals.

app_1000T_1

Optional Items

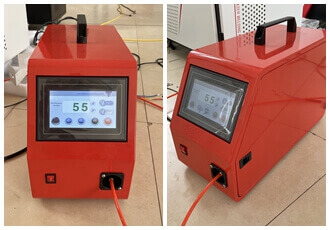

Separated Design, the auto feeder is separated parts with machine which is easy to feed feeding wires
Support Wire Size 6mm, 0.8mm, 1.2mm and 1.6mm

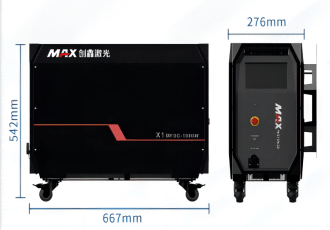

Adopting Advanced Max Fiber Laser Source, Different Design Air Cooling Fiber Laser Welding Machine
Smaller Size and Light Weight Only 39kgs

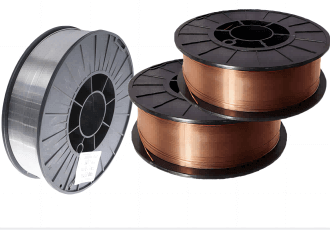

Stainless steel wires, carbon steel wires, aluminum wires
Resistant to corrosion, antioxidant, firm welding, smooth feeding and small splash

Power	1000W	1500W
Fiber Laser Mode	Continuous Laser
Polarization Direction	Random
Laser Output Adjustment	10%-100%
Wave Length(nm)	1080±3
Output Power Instability	<3%
Position Red Point Power(mW)	>0.5
Output Port	QBH
Fiber Cable Diameter	20,30 or 50
Fiber Cable Length	Standard 5 meters/Customized 10 meters
Working Voltage	220V±10%/50Hz or 60Hz
Max Power Consumption(W)	<4000	<6000
Controlling Mode	Touch Screen with Built-in Software
Dimension(with Handle)	356772CM
Weight(KGS)	<55KGS	<65KGS
Working Temperature	5 degree-40 degree
Working Relative Humidity	<70
Cooling	Air Cooling
Stored Temperature	-10 degree-60 degree

1000w Fiber Handheld Maximum Welding Depth
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●
Galvanized Sheet	●	●	●
Iron	●	●	●	●	●
Mild Steel	●	●	●	●	●
Aluminum	●	●
Brass	●	●
1000w Fiber Handheld Welding Penetration Thickness
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●
Galvanized Sheet	●	●
Iron	●	●	●
Mild Steel	●	●	●
Aluminum	●
Brass	●
1500w Fiber Handheld Maximum Welding Depth
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●	●
Galvanized Sheet	●	●	●	●	●
Iron	●	●	●	●	●
Mild Steel	●	●	●	●	●
Aluminum	●	●	●
Brass	●	●
1500w Fiber Handheld Welding Penetration Thickness
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●
Galvanized Sheet	●	●	●
Iron	●	●	●	●
Mild Steel	●	●	●	●
Aluminum	●	●
Brass	●	●

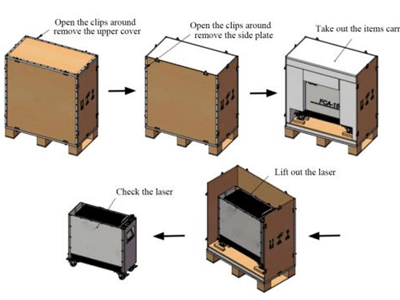

Package and Shipment

Model	Package Size	Gross Weight
BE-WF1500S	0.45m×0.77m×0.82m, 0.28CBM	85KG


Inside layer is covered by thickening plastic film and fastened.	Middle Layer wrapped by thick sponge foam to avoid shaking on the way.	Outer layer packed by professional export thick wood craftcase.
