All Cover Exchange Table Metal Laser Cutting Machine
| Category: | Fiber Metal Laser Cutting Machine |
| Model No.: | BE-FM-3015XC |
| Views: | 3800 |
| Rating: | ★★★★★5/5 Based on 5200 Votes |
| Price Range: | US$20,000 – US$50,000/set Based on the Features |
| Payment Term: | T/T Bank Transfer |
| Leading Time: | 40-60 Days |
| Shipping: | Sea Shipment |
| Warranty Period: | 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
The protective fiber laser cutting machine adopts totally enclosed laser protective cover, professional numerical control cutting system, top-level imported parts and strict assembly process, ensuring the safe, stable, efficient and high-precision operation of the cutter.
With Double Exchange platform makes loading and unloading more convenient and more efficient, suitable for large metal plate high precision processing.
STANDARD COMPONENTS
◆ CYPCUT®FSCUT2000 CNC Control System
◆ Fuji®High Dynamic EtherCAT servo drive
◆ BSTLASER®Dynamic System 4.0:1.5g Acceleration
◆ BSTLASER®Fast Piercing 2.0:Ultra Performation
◆ Automatic Table Exchanger 3015 (Optional 4015,4020,6015,6020)
◆ Smoke Extraction Fan System
◆ Graphite Anti-burn Technology
◆ Fiber Laser Source Raycus 3000w 4000w 6000w 12000w
◆ Class IV safety system and CE marking
◆ CYPCUT®Embedded Pcs: Industrial PCs with directly integrated I/O level
◆ Hiwin®high performance and high accuracy rack and pinion system
Metal Cutting Capacity
| Laser Power | 3000W | 4000W | 6000w | 10000W | |
| Nominal power | kw | 3 | 4 | 6 | 10 |
| Power requirement | kw | 10 | 13 | 19 | 32 |
| Wavelength | nm | 1074 | 1074 | 1074 | 1074 |
| Carbon steel | mm | 22 | 25 | 25 | 20 |
| Stainless steel | mm | 10 | 12 | 20 | 8 |
| Aluminum Alloys | mm | 8 | 10 | 16 | 6 |
| Brass | mm | 6 | 8 | 12 | 5 |
Machine Feature:
◆ With powerful cutting ability, flying cutting speed, extremely low operating cost, excellent stability, high-quality processing and strong adaptability
◆ Adopt parallel interactive working table, fully surrounded by sheet metal outer protection which is Metal mechanical equipment with superior performance and cost performance.
◆ Higher parts configuration and international first level components which largely improve the machine cost performance.
◆ Unique machine designed with reinforcing ribs in the middle of the bed which improve the bed lifetime.
◆ The whole machine adopts large enclosure design to protect the safety and protect the environment.
◆ With intergrated industrial LCD touch screen which is easily to set the parameters and save the occupying size.
Parts Introduction
Full Enclosed Cover Cabinet
- The electric cabinet is integrated with machine body to occupy smaller area, such fully-sealed structure and standard electric wires can prevent dust entry and risky flames.
- Equipped with CE safety protection glass safety window and interlock design which strictly designed in full accordance with European safety standards.
Aviation Aluminum Casting Gantry
- It is manufactured with aerospace standards and formed by press extrusion molding. After aging treatment, its strength can reach to very strong point.
- Aviation aluminium has many advantages: good toughness, lightweight, corrosion resistance, anti-oxidation and highly increase the processing speed.
Heavy Duty Welding Bed
- Using the current most popular Heavy-duty steel plates welding structure with high stability.
The structure materials undergoes high stress relief annealing and natural aging treatment to eliminate internal stress,it can keep the machine for 50 years without distortion. - There has reinforcing ribs inside the tube and adding four supports,ensure high-speed operation without shaking.
Intelligent Controlling System
- CypCut controlling system is specially for controlling laser cutting machine, which is very convenient and practical. It can achieve the best metal cutting processing effect when match with the laser cutting machine.
- It supports various graphic like AI, DXF, PLT, Gerber, LXD and international standard G codes generated by software such as Master Cam, Typer3, and Wentai.
- Supports segmented piercing, progressive piercing, pre-piercing, grouping and pre-piercing, and supports setting laser power, frequency, laser form, gas type, air pressure, peak current, delay, follow height, etc. separately.
Transmission System
- Taiwan YYC grinding grade rack& Taiwan PMI/Hiwin high precision linear square track (Original Genuine)
- It ensures high cutting speed with extremely precision position and long service life.
Auto Focusing Laser Cutting Head Raytools
- Modular design with easy maintenance.
- Auto focus to reduce human intervention and improve piercing and cutting efficiency.
- 3 Cover glasses (top, middle and bottom) to protect collimation & focus lens.
- IP65 class dustproof, patented cover glass cover plate. All-around dust prevention.
- Fiber Interface: QBH, QD, G5
- Speed: ≤170mm/s,Accuracy: ≤50um
- Collimation Side (Top)Φ24.9*1.5mm-,Focusing Side(Bottom/Middle)Φ27.9*4.1mm
- Assistant Gas: ≤30bar,Weight: ~5.7kg
Japan Imported Servo Motors
- Original Japan AC Servo Motor with Driver Σ-7 series.
- Imported servo system ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop, control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance
Reducer
- Japan Imported Shimbo reducer
- Flange output
- Accuracy and stability life are more than 10 of the shaft output
- Grade 3 accuracy
Cooling System
- Top China Brand S&A CWFL series with variety of alarm protection functions.
- It has two working modes of constant temperature and intelligent temperature regulation
Application
Applicable Industries
Rail transit, shipbuilding, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchen and bathroom, decorative advertising, laser external processing services, etc. machinery manufacturing and processing industries.
Application Materials
Carbon steel, stainless steel, aluminum alloy, brass, copper, pickling sheet, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy and other metal materials.
Optional Items
Double Exchange Working Platform
With Double Exchange pallet structure and double station which make the loading and unloading effective
Air Compressor
Integrated and Compact Air Compressor ,economic air assistant gas system

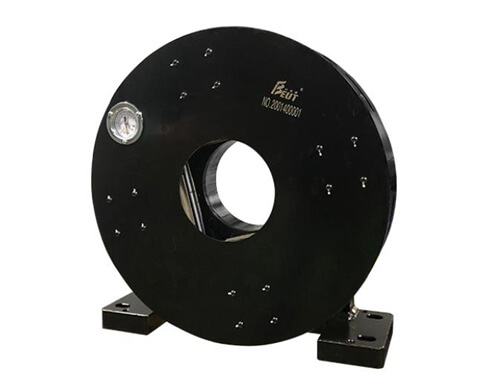

Rotary System Chuck
cutting various tubes and pipes like round,square ,rectangular tubes,channel,angle and special-shaped tubes.
| Model | BE-FM-3015XC |
| Working Size | 1500×3000mm |
| Laser Power | 4000w 4000W 6000W 10000W |
| Laser Source | Raycus (Optional: Max/JPT/IPG) |
| Optional Size | 4000×1500mm/6000×1500mm/6000×2000mm |
| Max. Cutting Speed | 30-50 Meters / Min (up to materials) |
| Max. Location speed | 60m/min |
| Laser wavelength | 1070nm-1080nm |
| Minimum line width | ≤0.1mm |
| X/Y Location Accuracy | 0.03mm |
| Re-location precision | ±0.02mm |
| Max Acceleration | 1.5G |
| Max. moving speed | 100m/min |
| Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc |
| Power demand | 3 PHASE AC 380V 50HZ/60HZ |
| Working Table | Exchanging Working Table |
| Worktable max. load | 6000KGS |
| Transmission Method | gantry type double rack servo drive |
| Table-driven system | Japanese Imported Servo Motor & Driving System |
| Focus Method | Following and Automatic Adjust Focus |
| Control software | Cypcut |
| Working Environment Temperature | 0℃～45℃ |
| Working Environment Humidity | 5%～95% non-condensing |
Package and Shipment
| Model | Machine Size Dimension | Gross Weight |
| BE-FM-3015XC | (8040+6700)×3045×2100mm | 6000KG |
 |
 |
 |
| Inside layer is covered by thickening plastic bag and foam for waterproof. | Loading container EXW factory, workers putting machine into container | Send to the named sea port and load in the container |
-
