Auto Flange Channel Letter Bender Machine
| Category： | Channel Letter Bending Machine |
| Model No.： | BEL-X180 |
| Views： | 1500 |
| Rating： | ★★★★★4.8/5 Based on 1200 Votes |
| Price Range： | US$8000 – US$12000/set Based on the Features |
| Payment Term： | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time： | 15-20 Days |
| Shipping： | Sea/Train/Truck |
| Warranty Period： | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Channel letter bender machine BEL-180X increased the auto notching and flanging model developed based on traditional automatic super letter bending machine. It is with high accuracy bending with the more bending bar system and quick-change bending mold system, not only with all functions of model BEL-S150 but also it can make notching and flanging automatically for flat aluminum coil.
Which is the high-end bending equipment for the first choice especially suitable for the large letters(usually found in square and plaza), stainless steel letters, punching letters, resin letters and giant glowing letters etc.
Machine Feature:
◆ Material pre-straightening system to avoid material jamming during processing.
◆ Mechanical arm alternatively feeding structure ensure fast feeding speed&no any deformation on materials
◆ Slotting tools are made of imported high-strength alloy blades, able to notch coils up to 2mm (0.059”’).
◆ Five-axis top China brand servo systems, able to v-cut both stainless steel and aluminum up to 1.5mm (0.059”).
◆ Automatic flanging to make it flexible and easy for the channel letter clinching.
◆ The telescopic bending blade and caster bending structure feature lifetime stability and accuracy.
◆ Modularized electrical part, separated strong and weak circuitry parts, no interference, more stable
◆ It is the best model for making trim cap channel letters, reverse channel letters, and flanged channel letters.
Parts Introduction
Seek for Efficiency
- Servo motors ball screws control, pneumatic clamping alternate feeding Structure
- High precision, fastest speed and big power.

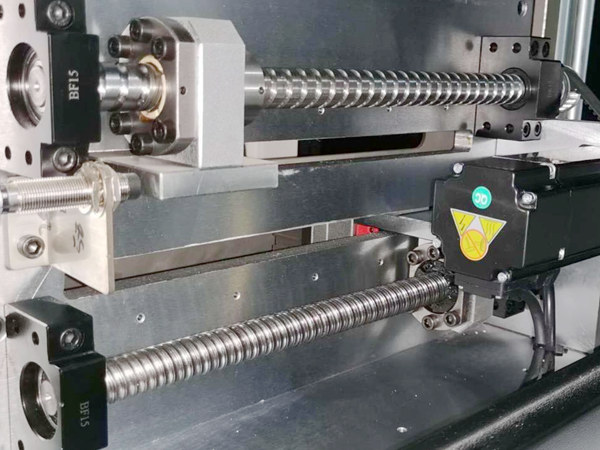

Alternate Clamping and Feeding with Grinding-grade Screw
It has higher accuracy and stronger hardness during high speed running
Closed-loop Feeding Test System and high-precision encoder
Detect the feeding speed and length, avoid the jamming during feeding.
Manipulator Fixture
- Using the emery spraying process to prevent the feeding slippage
- Ensure feeding accuracy, eliminate the problem of slow processing efficiency caused by inaccurate feeding.
Unique Material Receiving Reminder Function
It ensures that the materials processed by the shearing machine are not wasted, and the materials are used more rationally and effectively.
Korean Korloy hard alloy steel blades
Double-sided octagonal, low cutting cost, easy to replace. The cut is neat and there is no burr.
Circulated and Progressive Slotting Structure
- Adopt TBI ball screw which ensure stable and accurate running.
- Guarantee the even slotting depth and perfect finished letters
Pneumatic Slotting Control
It completes the shearing action by pneumatic control of die stamping, compact and stable structure, high degree of modularity and easy maintenance.

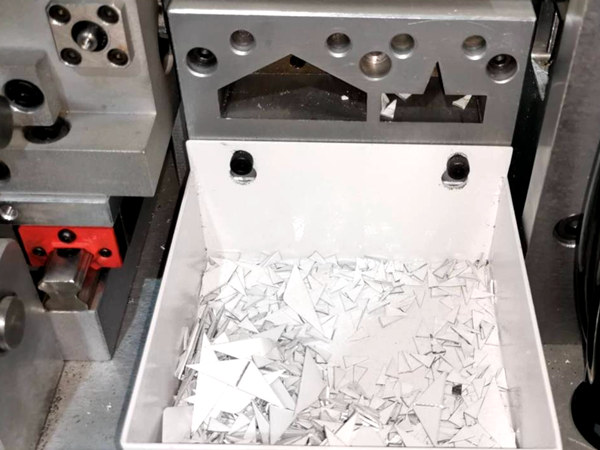

Built-in Waste Collection Box
It effectively recovers the waste and maintain the cleanliness of the equipment.
Right-angle Folding Structure
Flat strip using pneumatic right-angle folding structure, all parts are processed by the CNC machining. With high strength structure, easy to clean and maintain.
Integrated circuit board
It make the electrical part modular, clear layout and clear control classification. the circuit part is separated from strong and weak, no interference.
High-quality Servo motors and drives
They are stable in operation and quality guaranteed.
Application
Applicable Industries: Advertising channel letter notcher, such as logos, signs, neon signs, billboards, light boxes production, outdoor advertising and other advertising making channel letters production.
Applicable Materials: Aluminum strip bending, stainless steel strip bending, iron bending, galvanized steel bending and bending galvanized pipe, etc.(there are two kinds of slotting knives, one is especial for aluminum bending, another type is to bend stainless steel, galvanized steel bending, etc.)
Optional Items
Industrial PC system with well installed software and tested parameters for direct use
Air Pressure:0.6-0.8mpa,You can prepare by yourself or buy with machine together .
Aluminum Coils
High Quality Aluminums Coils with Different specifications for you as optional choice
| Category | Feeding system | Precision screw transmission and mechanical arm alternatively feeding structure (closed loop self-test system) |
| Slotting system | Hard alloy planer | |
| Notching structure | Notching by air cylinder | |
| Flanging structure | Pneumatic flanging by air cylinder | |
| Bending system | Double -pole alternate part-arc institution and patented alternative arc-extrusion structure | |
| Driving motor | Servo motor 3 set; stepper motor 1 set | |
| Weight | 800kg | |
| Dimensions | Body: L2140mm*W700mm*H1560mm; Feeding table: L500mm*W500mm*H1100mm | |
Performance |
Material category | Flat aluminum / Stainless steel / Galvanized plate (height: 20-180mm） |
| Material thickness | Flat aluminum: 0.6 – 1.5 mm/ SS: 0.3-1.2mm / Galvanized sheet: 0.4-1.2mm | |
| Flanging thickness | Flat aluminum 0.8mm | |
| Notching angle | 30°/ 120° | |
| Flanging width | 10mm | |
| Support format | AI / PLT / DXF / NC | |
| Feeding accuracy | Length + 0.1mm Radius > 4mm | |
Sfotware |
Control card | Leetro Four -axis motion control card |
| Software system | Auto drive / CBS4 auto bending system | |
| Input voltage | 220V 50Hz 3Kw | |
| Air pressure | 0.6-0.8Mpa |
Package and Shipment
| Model | Package Size | Gross Weight |
|---|---|---|
| BEL-X180 | 250cm×82cm×170cm, 3.485CBM | 650KG |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craft case. |
-
