Multifunctional Co2 Laser Cutter for Wood and Metal 1390
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK1390M |
| Views | 3500 |
| Rating | ★★★★★4.9/5 Based on 700 Votes |
| Price Range | $6000 – $9500/Set Based on the Features |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time | 10-15 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Small Metal&Non-metal Laser Cutting machine adopt Germany Mix laser technology, it is equipped with co2 laser tube, can be used for cutting metal sheet such as carbon steel, stainless steel and nonmetal materials such as acrylic, die board, MDF, plywood, etc. The laser cutting machine for metal’s cutting thickness can reach 1-2mm stainless steel, 1-3mm carbon steel and mild steel, 20-30mm acrylic and plastic, 10-20mm wood, 20-30mm MDF.
Machine Feature：
- The super high photo-electric conversion efficiency can be up to about 30%. So the machine runs with the lowest power consumption compared to other laser cutting machines under output power. The cutting lost is the lowest.
- With laser beam of good quality from high power laser tube, the focus spot is super fine, and the cutting seam is very smooth. Then the efficiency can be higher, and the quality is better.
- The light path is totally composed of fiber laser and fiber laser units, which are combined together based on cable splicing technology. And the whole light path is enclosed in fiber laser wave guide.
- No laser working gas and can start cutting just by blowing air.
- The efficiency is very stable and reliable, and you have no need to adjust the light path. So it is easy to operate and maintain the machine.
- The machine costs little water and energy. And the machine requires no gas. So the running cost is lower.
- Optional choice high configuration model with Ball Screw Transmission + Japan Imported Servo Motor and Driving System
| 150w / 180w Cutting Parameters | |||
|---|---|---|---|
| Material | Thickness | Speed | Auxiliary air |
| Carbon steel | 0.5mm | 40-50mm/s | Oxygen |
| 1.0mm | 30mm/s | ||
| 1.5mm | 16-20mm/s | ||
| 2mm | 10mm/s | ||
| Stainless steel | 0.5mm | 40-50mm/s | Oxygen |
| 1.0mm | 30mm/s | ||
| 1.5mm | 16-20mm/s | ||
| Acrylic | 20mm | 2-3mm/s | Air |
| MDF/ Plywood | 10-15mm | 10-15mm/s | Air |
| 80w / 300w Cutting Parameters | |||
|---|---|---|---|
| Material | Thickness | Speed | Auxiliary air |
| Carbon steel | 0.5mm | 55 mm/s | Oxygen |
| 1.0mm | 45 mm/s | ||
| 1.5mm | 30 mm/s | ||
| 2.0 mm | 25 mm/s | ||
| 3.0mm | 10 mm/s | ||
| Stainless steel | 0.5mm | 60-70mm/s | Oxygen |
| 1.0mm | 50mm/s | ||
| 1.5mm | 25-30mm/s | ||
| 2.0mm | 15 mm/s | ||
| Acrylic | 20mm | 3-5 mm/s | Air |
| MDF /Plywood | 10-15mm | 15-20 mm/s | Air |
Parts Introduction
Auto-focus Metal Sheet Laser Cutting Head
When the metal sheet is not plain, the dynamic focus laser cutting head can adjust the focusing distance automatically. Realize the accuracy of cutting effect.
Ruida Controlling System
- latest generation of laser engraving / cutting control system which has better hardware stability and better resistance to high voltage and static electricity.
- The human-machine operating system based on the 5-inch color screen has a more friendly operation interface and more powerful functions.
Co2 Beam Combined Laser Device
- Adopted own patented technology, integrated light combining device, concentrate light energy and improve beam quality
- Available for single tube output and double tubes synchronous control, continuous adjustable power output
- All metal structure, more comprehensive protection
With kovar sealing technology and inner catalyst, lifetime is over 10000 Hrs
Advanced Colorful LCD Screen+ USB Port+ DSP Offline Control
Support Both Metal and Non-Metal Cutting Parameters, Support U disk, USB communication
High Density Blade Strip Working Table
We adopt high density thicken blade strip working table, to ensure the heay loading weight when cutting wood, stainless steel, acrylic, MDF such thick materials. It ensures non-deformation and accurate cutting in the long-term

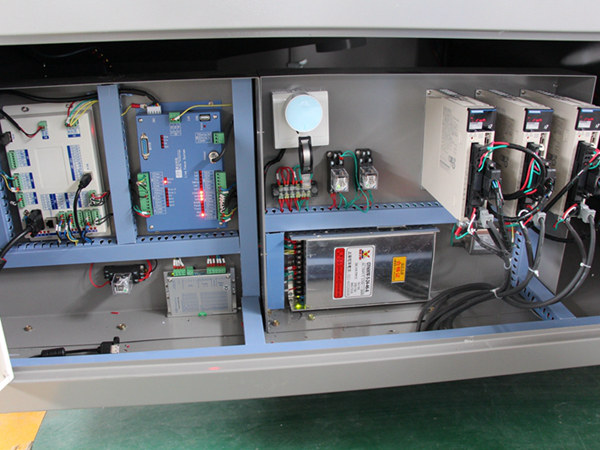

Electric Cabinet
The laser power supply, motors, driver are assembled in order. The wire connection and screws are much more stronger and not easy to loosen. Quality can be compared with Germany machines.
Thicken Machine Bed and Body
Adopt Thicken machine bed at least 2 grade higher than common co2 laser, heavy loading,
Not easy to get distorted.
Reflect Mirror& Lens
High-Quality USA imported lenses ensure more precise beam focusing, finer beam and longer life.
Industrial Water Chiller
Adopt CW-5000/CW5200 /CW-6000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
High Performance Power Supply
- With Ampere Meter display shown on the LCD screen
- Built-in fault detection
- Built-in fault detection

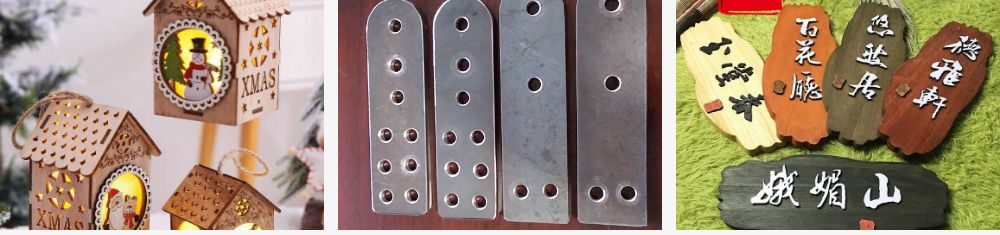

Application
Applicable materials: acrylic, stainless steel, carbon steel, MDF, and die board.
Applicable show: metal spectacle frame, furniture plate cutting, MDF photo frame cutting, building model cutting.
| Material | Cut | Engrave | Material | Cut | Engrave |
| Acrylic | Plexiglass | PMMA | Perspex | √ | √ | Organic board | Double color sheet | √ | √ |
| Wood | Plywood | Veneer | MDF | Balsa | √ | √ | Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
| Fabric | Cloth | Textile | √ | √ | Carpet | Mat | Rug | Wool Felt | √ | √ |
| Paper | Cardboard | Chipboard | Press Board | √ | √ | Ceramic | Tile | Marble | Glass | √ | √ |
| Plastic | √ | √ | Fiber Glass | Filter Cloth | √ | √ |
Optional Items
CW-6000 Industrial Water Chiller
Big industrial water chiller to ensure machine’s stable and loge time running,usually for power >300w
Auto CCD Recognition System
Auto Nesting+Auto Scanning+Auto position recognition,or cutting printed Picture,like logo, pictures on t-shirt etc
Servo Motor
Standard is with three phase step motor,servo motor ensure high cutting precision and small noise
Ball Screw Transmission
Standard is with belt transmission,ball screw transmission can sure high cutting accuracy under high speed processing
| ModelWorking | BE-DK13090M |
| Area | 1300*900mm |
| Laser Power | 150w 180w 260w 300w |
| Laser Type | CO2 Sealed Laser Tube, 10.6um |
| Transmission Method & Driving System | High Precision Ball Screw Transmission |
| Japan Imported Yaskawa Servo Motor and Driving System | |
| Cooling Type | Water Cooling,150w-180w Machine use CW-5200, 260w-300w Machine use CW-6000 |
| Working Table | Stainless steel knife table |
| Laser Output Control | (0-100% Set by Software ) |
| Smallest Character Engraving | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
| Highest Scanning Precision |
4000DPI |
| Positioning Accuracy | ±0.02mm/m |
| Positioning Speed | 20m/minMax. |
| Cutting Thickness | 40mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | BMP, PLT, DST, DXF, and AI, etc |
| Compatible Software | CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software |
| Drive System | High-precision 3-phase Stepper Motor |
| Auxiliary Equipment | Exhaust Fan and Air Exhaust Pipe |
| Working voltage | AC110-220V ±10%/10A,50-60HZ |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-DK1390M | 2250x1650x1420mm, 5.272CBM | 800KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
