Stainless Steel Fiber Metal Laser Tube Cutting Machine
| Category: | Fiber Metal Laser Cutting Machine |
| Model No.: | BE-FM-6022P |
| Views: | 4800 |
| Rating: | ★★★★★5/5 Based on 5200 Votes |
| Price Range: | US$25,000 – US$70,000/set Based on the Features |
| Payment Term: | T/T Bank Transfer |
| Leading Time: | 40-60 Days |
| Shipping: | Sea Shipment |
| Warranty Period: | 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Pipes and Profiles are widely used in many applications from mechanical engineering and system construction to the furniture industry, the tube and fiber laser cutting technology allow for the automatic production of the parts designed in CAD with precision and repeatability. It’s the high precision metal processing equipment for cutting various tubes and pipes like round, square, rectangular tubes, channel, angle and special-shaped tubes.
STANDARD COMPONENTS
◆CYPCUT®FSCUT3000S CNC Control System
◆RAYTOOLS®Intelligent 3D Dimension Tube Laser Cutting Head
◆Fuji®High Dynamic EtherCAT servo drive
◆BSTLASER®Dynamic System 4.0: 1.5g Acceleration
◆BSTLASER®Fast Piercing 2.0: Ultra Preformation
◆Smoke Extraction Fan System
◆Fiber Laser Source: Raycus/IPG/MAX/JPT
◆Class IV safety system and CE marking
◆CYPCUT®Embedded Pcs: Industrial PCs with directly integrated I/O level
◆Hiwin®High performance and high accuracy rack and pinion system
◆Tube Diameter: Φ220 (Optional: Φ160/Φ230/Φ350)
◆Automatic Tube Length: 6 Meters (Optional: 8m,12m,16m, etc )
Metal Cutting Capacity
| Laser Power | 2000W | 3000W | 4000W | 6000W | |
| Nominal power | kw | 2 | 3 | 4 | 6 |
| Power requirement | kw | 7 | 10 | 13 | 19 |
| Wavelength | nm | 1074 | 1074 | 1074 | 1074 |
| Cutting capacity | |||||
| Carbon steel | mm | 20 | 22 | 25 | 25 |
| Stainless steel | mm | 8 | 10 | 12 | 20 |
| Aluminum Alloys | mm | 6 | 8 | 10 | 16 |
| Brass | mm | 5 | 6 | 8 | 12 |
Machine Feature：
◆ Optional three-chuck structure, double cutting position, realizing “zero” tail material by laser tube cutting processing.
◆ Using a pneumatic four-claw bus-mastering self-centering chuck, equipped with multi-function claws, which can hold pipes with various cross-sections.
◆ Professional pipe-cutting programming software supports the cutting of channel, angle and H-shaped steels and special-shaped pipes, which can effectively save materials and improve cutting efficiency;
◆ Using a capacitive three-dimensional fiber laser cutting head, with high sensing accuracy, high sensitive response and the most reliable performance, the sharp and thin cutting nozzle part can effectively avoid the special-shaped section.
◆ Adopt an advanced servo auxiliary support devices to ensure effective support, prevent the sagging of the pipe and ensure the processing accuracy.
◆ Built-in complete cutting process parameter library with user-friendly parameter interface, realizes “one-click setting” processing technology based on pipe types, it makes the processing more intelligent and efficient.
◆ Owing the control function of cutting sharp corners, seamed edges and various cutting process, ensure the smooth cutting quality and high efficiency on the sharp corner and profile section.
Parts Introduction
Heavy Loading Machine Body
- Adopting heavy-duty steel plate welding structure,processed by large gantry CNC lathe processing, twice annealing,
- The machine body can ensure stability and non-deformation for 50 years, and has the characteristics of stable structure, good rigidity and high dynamic response, integrated cast aluminum gantry ensures high speed and high balance performance.
Auto Focus 3D Laser Cutting Head
- Automatic focusing intelligent CNC laser cutting head, fast dynamic response. adopting three-dimensional capacitive fiber laser cutting head, which has high sensing accuracy, sensitive response with the most stable and reliable performance.
- Sharp laser cutting head the sharp can effectively avoid the special-shaped section.
FSCUT3000S Cypcut Control System
- FSCUT3000S designed for professional tube cutting, supporting standard tube (rectangle, circle, oval, ellipse and obround etc.) and steel channels (T/U/H shaped) production of high precision and efficiency.

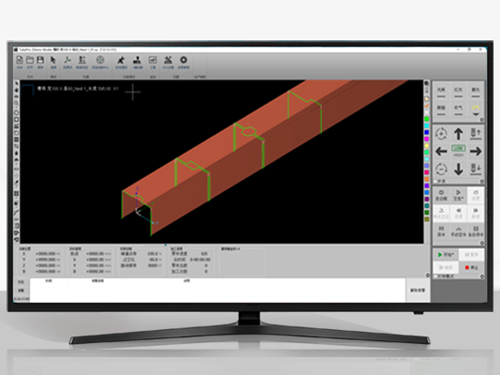

- Software: TubePro tube cutting software/CypCut sheet cutting software
- Interface type:32-bit PCI bus,132MB/S
- Motor control: X/Y1/Y2/W axis pulse output, highest frequency 3MHz
- X/Y1/Y2 axis access encoder feedback, highest sampling frequency 10MHz
- W axis port can be assigned to a rotary axis or autofocus unit
Pneumatic Double Action Chuck
- Specially designed for laser pipe and sheet cutting equipment. The product itself can be used as an independent rotating spindle, which can quickly clamp and loosen through the side rotating air intake, and the air source can be disconnected before working.
- Double pneumatic full-stroke CNC chuck, it’s with an advanced chuck clamping system, it can adjust the center of gravity automatically, the clamping force is automatically controlled to avoid the damage of thin tube clamping.
Automatic Front Picking Device
Friendly front materials collection device, the cut waste is automatically dropped to the waste trolley to realize intelligent processing, increase the output value of pipe cutting.
Automatic Diameter Adaptment Wheel
- It adopts an intelligent tube support design which can solve the deformation problems in the process of long tube cutting.
- With solid design inside which ensure high rigidity and strength.
Japan Servo Motors
Imported with big power servo system ensures the possibility of realizing extremely precise positioning with the excellent dynamic response acceleration property and closed loop, control method, and that makes the moving positioning mechanism operate smoothly, reliably and free of maintenance.
Application
Applicable Industries
Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.
Application Materials
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheets, metal plate, metal pipe and tube, etc. Fiber Laser Cutting Machine.
Optional Items
World Top Brand IPG Fiber Laser Device (2000w 3000w 6000w 10000w)
High Quality China Made JPT brand fiber laser device (2000w,3000w,6000w)
Integrated and Compact Air Compressor,Economic Air Assistant Cutting Gas
| Model | BE-FM-6016P | BE-FM-6022P | BE-FM-6035P |
| Tube Range Size |
Round: Φ15-Φ155mm Square: □16-□155mm Rectangular: Long Side≤155mm |
Round: Φ15-Φ220mm Square: □20-□220m Rectangular: Long Side≤220mm |
Round: Φ15-Φ345mm Square: □20 – □240mm Rectangular: Circumcircle Φ≤345mm |
| Length Range | 0-6000mm | 0-6000mm | 0-6000mm |
| Laser Power | 2000W 3000W 4000W 6000W | ||
| Laser Source | Raycus (Optional: Max/JPT/IPG) | ||
| Maximum Load Of Chuck | 400kg(65kg/m) | ||
| Chuck Speed | 85rpm | ||
| Max. Running Speed | 100m/min | ||
| Tailing Length | 0-180mm | ||
| Laser wavelength | 1070nm-1080nm | ||
| Minimum line width | ≤0.1mm | ||
| X/Y Location Accuracy | 0.03mm | ||
| Re-location precision | ±0.02mm | ||
| Max Acceleration | 1.5G | ||
| Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc | ||
| Power demand | 3 PHASE AC 380V 50HZ/60HZ | ||
| Cooling Way | Water Cooling | ||
| Table-driven system | Japanese Imported Servo Motor & Driving System | ||
| Focus Method | Following and Automatic Adjust Focus | ||
| Working Environment Temperature | 0℃～45℃ | ||
| Working Environment Humidity | 5%～95% non-condensing | ||
| Dimension | 11800×3500×2200 | ||
Package and Shipment
 |
 |
| Moisture Proof sealed vacuum packaging which Comply with Sea-Worthy Standard | Fixed well and load in the container 40’GP EXW, Ship to Sea Port |
-
