Industrial Gear Transmission 300w Co2 Laser Cutter 1325
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK1325PG |
| Views | 9500 |
| Rating | ★★★★★5/5 Based on 680 Votes |
| Price Range | US$5000 – US$9000/set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time | 10-15 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
BST LASER 300W 1325 Co2 Laser Cutter Machine is with High Precision Dual Gear Rack +Ball Screw Transmission, Perfect Combination of Speed and Cutting Precision. It totally solve the issues of unstability and precision during high speed cutting, the speed can reach 100mm/s when cutting 3mm acrylic with 300w.
Machine is designed as fiber metal laser cutting machine’s standard, it’s with high strength and heavy loading steel frame welding machine bed which has been treated with aging, CNC gantry milling ensures the accuracy and reliability of the bed.
Good Features
| High End Position; Flagship Product |
Innovative Technology; Multi Patent Technology |
High Precision and Speed; Combined in One Machine |
300w /450w Big Power; Meeting High Speed Cutting Demand |
| Smooth Running with Low Vibration; Ensure Laser Tube and Path Reliability |
High Power Optic Lens; Full Water Cooling Mirror Frame &Laser Head |
Mechanical Grade Assembly Accuracy; Meeting High Accuracy Demand |
Patent Technology; Double Blowing, Fire Proof Design |
◆ Use 300W high power laser tube. Double-tube folding balanced cavity structure, better laser output mode. Marble bracket, dual high voltage design, double power source mode, good life and stability.
◆ Support high-power and more reliable optical lenses. The mirror silicon-based gold-plated material has diameter 30mm, industrial-grade precision optical bracket and lens water-cooling function.
◆ High-power water-cooled laser head, compatible with multiple 20/25/30 diameters and multiple focal lengths. The height of the mirror and cutting nozzle can be adjusted freely.
◆ Patented laser head with double blowing design can better improve the quality of the cut surface and reduce the risk of fire.
◆ Software light control mode and motion control algorithm optimized for 300W high-speed cutting features. Patented zero reset technology.
◆ Optional CCD positioning, edging and cutting.
Parts Introduction
Heavy Machine Structure
- High Strength Heavy Loading Steel Frame Welding Structure
- Bed aging treatment not deform
- Digital Gantry Milling Process Ensure high accuracy
Japan Imported Shimpo Reducer
- Accuracy and stability life are more than 10 of the shaft output
- Grade 3 accuracy
Ball Screw Transmission
Ensure the high stability ,low noise and smoothness during travelling

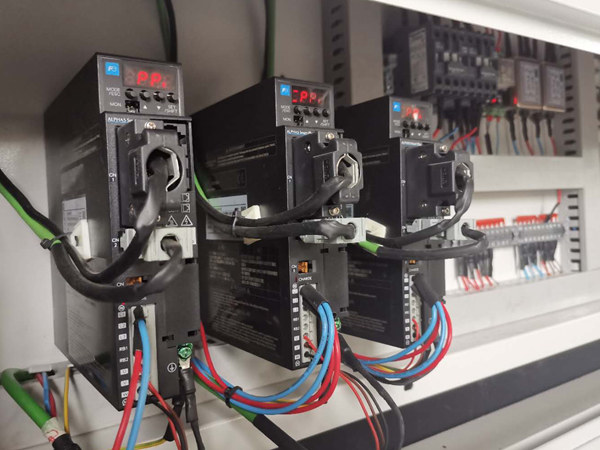

Big Servo Motor
X/Y/Z axis all adopt servo motor. Y Axis is equipped with dual driver which can realize high-speed and high-precision transmission
Industrial Water Cooling Laser Head
- Updated Laser Cutting Head,Patent Technology
- Double Blowing and Fire-preventing
- Compatible with different focus distance and lens size
300w Big Laser Tube
- Top China brand with high stability and fine laser beam
- Longer lifetime and global guarantee
- Meeting the requirement of high efficiency processing and mass industrial production
Module Screw Design
- X Axle Ball Screw is inside ,compact and small size
- No noise during cutting,dust proof and high cutting precision
Reflect Mirror Cooling System
- Cool lens and reflect mirrors as the huge heating dissipation
- Prolong lifetime and avoid damage as heating, especially for the power ≥180w
Auto Exhausting/Blowing
- Several Self-dependent Innovation.
- Auto opening when machine working and turn off when stop.
- Exhaust stop 15S/30S after machine stop processing, it ensure the smoke can be completely cleaned
Dust waste Recycling Drawer
It is scientific user friendly design. Users can easily clean the dust waste occurred during cutting, to avoid the dust affect the environment and cutting effect.
Industrial Water Chiller CW-6000
Adopt CW-6000 Water Chiller with temperature display and Auto Degree setting, which can avoid over burning, to protect the water circulation from electricity-off.
Application
Available Materials: acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, Gum, Ceramics, etc. nonmetal materials.
Application Industry: advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
What Material Can the Laser Handle?
| Material | Engrave | Cutting |
|---|---|---|
| Acrylic | √ | √ |
| Glass | √ | × |
| Laminates | √ | √ |
| Leather | √ | √ |
| Paper | √ | √ |
| Plastics | √ | √ |
| Stone | √ | × |
| Textiles | √ | √ |
| Wood | √ | √ |
| Metal | × | × |
Optional Items
Water Cooling Laser Head
Cool lens and reflect mirrors during high power and mass production cutting,prolong the parts lifetime .
Dynamic Following System
Machine can sense the cutting materials height and adjust focus distance automatically when the materials are not even .
CCD Edge Recognition System
Auto Nesting+Auto Scanning+Auto position recognition,or cutting printed Picture,like logo, pictures on t-shirt et
Big Air Pump
When machine need to cut very thicken wood or acrylic,ensure the fine and smooth cutting effect
| Model | BE-DK1325PG |
| One Time Max Processing Size | ≥1250X2450mm |
| Laser Power | 100W/120W/150W/180W/300W |
| Max Loading Width | Hermetic and Detached Co2 Laser Tube |
| Machine Weight | 1500KG |
| Max Moving Speed | 0-60000mm/min |
| Max Cutting Speed | 0-12000mm/min |
| Best Cutting Speed | 1mm/s-180mm/s |
| Speed Control | 0-100% (No Period Control) |
| Max Cutting Depth | 30mm (Cutting Acrylic) |
| Mechanical Ratio | 0.025mm |
| Laser Power Control | Software Control /Manual Control (Optional ) |
| Laser Tube Cooling | Industrial Water Cooling |
| Repeat Location Accuracy | ±0.1mm |
| Power | AC220V/50HZ ±15 50hz(optional 220v,60hz or 110v/60hz) |
| Driving | Servo Motor Drive ,Y Axis Dual Drive+X Axis Ball Screw Transmission |
| Support Graphics Mode | BMP DST PLT DXF AI DWG |
| Operating Temperature | 0℃-45℃ |
| Machine Size Dimension | 2100X3600X1200mm |
| Machine Power | 2500w (150w Laser Device ) |
Cutting Parameters
| Materials | Thickness | 300w Cutting Data | 150w–180w Cutting Data | |
| Cutting Speed | Best Cutting Speed | Cutting Speed | ||
|
Acrylic |
3mm | 80-100mm/s | 80mm/s | 40-60mm/s |
| 5mm | 40-50mm/s | 40mm/s | 20-28mm/s | |
| 8mm | 20-25mm/s | 20mm/s | 10-15mm/s | |
| 15mm | 8-12mm/s | 8mm/s | 2-4mm/s | |
| 20mm | 5-7mm/s | 4mm/s | 1-1.5mm/s | |
| 30mm | 2-3mm/s | 2mm/s | 0.6-1mm/s | |
| Note: Above Speed is just for you as reference, fastest cutting speed affected by materials, environment, voltage, etc. Best Cutting Speed is reference for the new laser tubes which ensure the best cutting effect. | ||||
Package and Shipment
| Model | Package Size | Gross Weight |
|---|---|---|
| BE-DK1325PH | 3620×2140m×1250m, 9.68CBM | 1500KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
