Hot Sale 80w 100w 130w 150w Co2 Laser Cutter Machine
| Category | Co2 Laser Cutting Machine |
| Model No. | BE-DK1490V/BE-DK1412V |
| Views | 10000 |
| Rating | ★★★★★5/5 Based on 499 Votes |
| Price Range | US$2500 – US$5800/set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Time | 7-10 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Two Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
BE-DK14090V is a classic designed CO2 laser cutting machine, which combines 10+ years technical upgrades and unique appearance innovation. Adopting stable and durable mechanical components, machine can realize high precision engraving and cutting on nonmetal materials.
The upgraded model integrates latest technology and ready for more extensions and options.
Good Features
◆ Heavy duty machine structure to ensure long time use without deformation, which suitable for mass production.
◆ Newly added powerful exhausting system and double blowing system to prevent fire, which ensure the cutting safe and human body’s health.
◆ Machine can equip with CCD camera to realize high precision positioning and contour edge cutting.
◆ Y axis with scientific middle drive and imported diaphragm couplingmake sure the transmission high accuracy.
◆ Industrial water cooling system with intelligent temperature display.
◆ Strip blades and honeycomb table are available depending on different cutting requirements and support modular up down table.
◆ Adopting Taiwan well-known brand square linear guide rail. Higher quality reduction gearbox generates smaller cutting vibration and ensures better cutting accuracy.
◆ All digital 3 phase step motor and drive, which balance(power and torque)largely exceed the 2 step motors which used by our most counterparts.
◆ 0 high speed port for data transmission, and support PC control and DSP offline USB drive importing file.
◆ Latest Ruida/Trocen controlling software supports 12 languages, suitable for global customers.
◆ Machine can resume unfinished cutting job when restarting if power off occasionally.
◆ Adopting long service life 10000h Co2 laser tube and USA imported lens mirrors, thinner laser beam which decrease the operation consumables cost.
◆ Single head or double heads can add as required. Front and back through enables whole plate feeding.
Parts Introduction
Machine Structure
- One molding, weight 150KG, processed by annealing and digital CNC machine, bearing capacity not easy to deformation.
- Frame made by 100*100 metal pipe which make sure high stability
Transmission System
- Y-axis middle drive + diaphragm flexible coupling, comparing with common single-side motor installation is more precise, double Y has better synchronization, concentricity is adaptive through flexible coupling.
- Drive system uses imported bearings for perfect work. Three-phase driver and three-phase motor. High speed, high precision, low noise and strong drive.
LCD DSP Offline Control System
- Adopting top China Brand Latest Ruida Controller with full number keys and other normal function key, making the operation more easier and convenient.
- Supporting 12 kinds of foreign language, communication without barriers.
Control Panel
- With Separate current and voltage display, easily to check whether machine is normal and exact issue.
- Panel Output Voltage is 24V which is more safe too human being.
Unique Exhaust System
Bigger Hole Down& Small Hole up, which can absorb smoke and dust during processing effectively.
Unique Working Table Design
Working Table Holder with different level hight, easy to adjust lifting height based on various materials thickness. Additionally which can easily put two working table (strike+honeycomb).
Glass Laser Tube
Top Brand CDWG Brand with lifetime 10000h
Original label and code on that where client can check offical website
Reflect Mirrors and Lens
- USA imported, global first brand
- Lens transmission rate is three times than other brand
- Mirror is a silicon gold dielectric film lens, which is 20% higher than the metal molybdenum mirror
Power Supply
Can supply sufficient laser power to the laser tube. With 5 years long-life span and stable performance.
Laser Cutting Head
- Updated Laser Cutting Head, Patent Technology
- Double Blowing and Fire-preventing
- Compaticable with different focus distance and lens size
Industrial Water Chiller
Adopt CW-5000/CW5200 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
Transmission System
Japan Imported NSK Bearing Transmission Lifetime prolong 5 times.
Auto Exhausting/Blowing
- Intelligent Self-designed Design.
- Auto opening when machine working and turn off when stop.
- Exhaust Fan stop 15S/30S after machine stop processing, it ensures the smoke can be completely cleaned.
European Standard Circuit Layout
- The electrical part is modularized with clear layout.
- Strong and weak current are separated, no interference and more stable during cutting.
Guide Rail
Genuine Taiwan Hiwin/PMI Brand Linear Guide Rail which ensure high stability and accuracy.
Loading System
Auto Front and Back through design system which ensure super-length and large materials processing such as big wood acrylic plate sheet more easily.

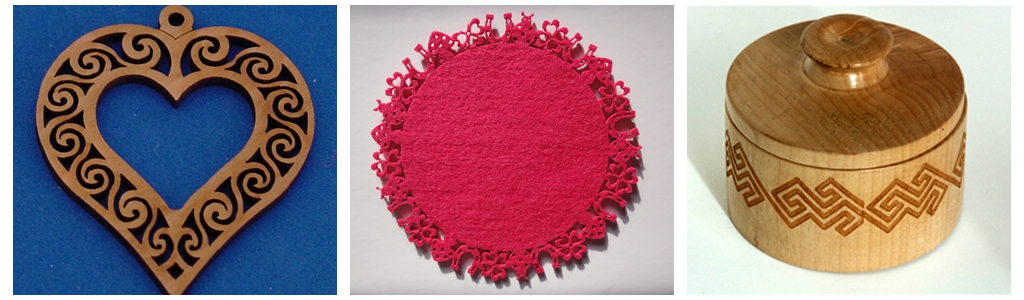

Application
Application Industry: craft gift, decoration, packaging and printing, molding, advertising sign, furniture, shoe, leather, clothing proofing, home decoration fabrics, handbags, gloves, clothing, embroidery, toys etc.
Application Materials: acrylic, plexiglass, wood, MDF, marble, cloth, leather, rubber, bamboo, crystal, horn, paper plate, plastic etc.
| Material | Engraving | Cutting | Material | Engraving | Cutting |
| Acrylic | √ | √ | Cloth | √ | √ |
| MDF | √ | √ | Paper | √ | √ |
| Wood | √ | √ | Stone | √ | × |
| PVC | √ | √ | Marble | √ | × |
| Double Color Board | √ | √ | Granite | √ | × |
| Rubber | √ | √ | Stainless steel | × | × |
| Leather, Fabric | √ | √ | Carbon steel | × | × |
Optional Items
Motorized Up and Down System with Auto Focus Function
- Mainly used for thicken materials with thickness more than 20mm, usually match with rotary system.
- With Separated Design, you can take it out from machine when doesn’t need this cutting performance or several machines use one set for costs saving.
Rotary System
- Rotary Engraving along the circle of cylindrical or column work pieces.
- We have 3 Deigns to meet your different application, special demand can be customized.
Double Working Table for Different Applications
- Honeycomb Working Table: Specially designed for engraving function or soft materials engraving cutting (like cloth, leather, silk, fabric, etc).
- Strike Working Table: Mainly used for cutting and heavy materials processing like wood, MDF, plexiglass, acrylic, etc.
CCD Camera System
Auto Nesting+Auto Scanning+Auto position recognition, or cutting printed Picture, like logo, pictures on t-shirt et.
Auto Following Function
Machine can sense the cutting materials hight and adjust focus distance automatically when the materials are not even.
Lens Cooling System
Cool lens and reflect mirrors during high power and mass production cutting, prolong the parts lifetime.
| Model | BE-DK14090V | BE-DK1412V |
| Working Area | 1400x900MM | 1400x1200MM |
| Laser Power | 80W/100W/130W/150W/180w/200w | |
| Laser Type | Hermetic and Detached Co2 Laser Tube | |
| Engraving Speed | 0-60000MM/S | |
| Cutting Speed | 0-10000MM/S | |
| Cutting Thickness | 0-25MM Acrylic (Others Determined by Materials) | |
| Repeat Location Accuracy | +/-0.0125MM | |
| Driving Mode | DC0.8A 24V Stepper Motor | |
| Position System | Red Dot | |
| Interface | USB | |
| Radio | 0.025MM | |
| Voltage | AC220V/50HZ or 110V/60HZ or Depend on Customer | |
| Minimum Letter | Chinese Character: 2MM, English Letter: 1MM | |
| Machine Power | ≤1500W | |
| Controlling System | CNC Professional Control System | |
| Support Graphics Mode | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, DST, PLT, DXF etc. | |
| Cooling Mode | Circulation Water Cooling and Protection System | |
| Auxiliary Devices | Exhaust Fan and Exhaust Pipe | |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table | |
| Power Control Mode | Laser Energy Combining Movement Control System | |
| Software | Professional Laser Engraving & Cutting Software | |
| Operating Temperature | 0-45C | |
| Operating Humidity | 5-95% | |
| Packing | Standard Wooden Box | |
| Operation | Detailed Video to Teach Customer How to Operate the Machine | |
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-DK1490V | 2.21m×1.6m×1.28m, 4.53CBM | 600KG |
| BE-DK1412V | 2.21m×1.92m×1.26m, 5.35CBM | 650KG |
 |
 |
 |
| Inside layer is covered by thickening pe film and foam for waterproof. | Middle layer is covered by foam to protect the machine from shaking | Outside is with fumigated Wooden Box which comply with export standard |
-
