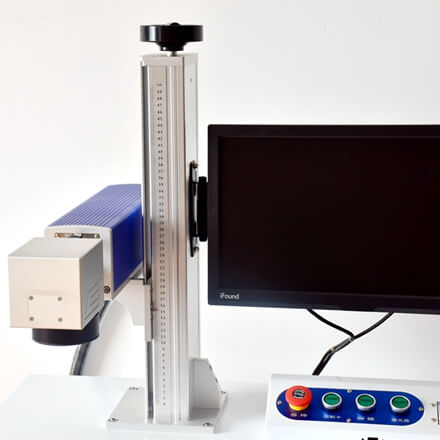

Laser Metal Marking Machine With Industrial PC
| Category | Fiber Laser Marking Machine |
| Model No. | BE-F20D |
| Views | 57600 |
| Rating | ★★★★★4.8/5 Based on 500 Votes |
| Price Range | US$1899 – US$2799/Set |
| Payment Term | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Production Time | 5-7 Days |
| Shipping | Sea/Train/Truck |
| Warranty Period | Three Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
Laser metal marking machine is the most advanced marking equipment in the world today. It has the characteristics of good beam quality, small size, fast speed, long service life, flexible and convenient installation and maintenance-free. The laser metal marking machine uses an advanced fiber laser source as a generator, which wavelength is 1064nm, and the whole machine’s lifetime over 120,000 hours. Compared with other types of marking machines, the optic-electric conversion rate much higher, and the performance in energy saving and environmental protection is also better.
Machine Feature:
◆ Long Lifespan: As adopted German advanced mature fiber optical technology, the machine’s lifetime over 120,000 hours, which largely increases the service time.
◆ Free of Maintenance and No Consumables: During operation, fiber laser markers are almost free of maintenance, no consumables need, which saves labor and cost.
◆ Easy Operation: No need to adjust laser path, no need for professional skills and just common people can operate after 1-2 days training, which lowers the use threshold.
◆ High-efficiency Photoelectric Conversion Rate: No loss of power coupling, no consumables, obviously reducing operating costs.
◆ Fast Speed: As adopted advanced Galvo head, the scanning speed reaches 8000mm/s max, which largely shortens the marking time.
◆ Powerful Marking Software: Letters/patterns/characters/code/image…different content can be marked. You can mark whatever you want. Just need to load the marking file into the software.
◆ Wide Application: It enables marking on different materials, from metal, stainless steel, aluminum, iron, gold, silver, titanium, and other nonmetals plastic, ceramic, ABS…
◆ Environmental-Friendly: Non-pollution and safe to people.
◆ Durability: It can bear hostile environments, such as shock, vibration, high temperature or dusty.
Parts Introduction

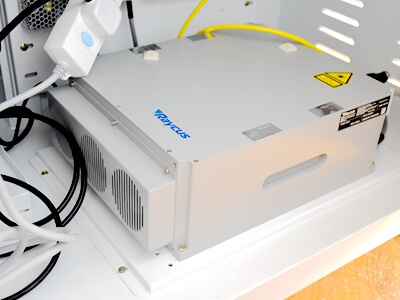

Fiber Laser Source
- World famous fiber laser source, which has a lifetime of over 120,000 hours, no consumables, is free of maintenance with reliable quality.
- Extremely thin laser beam, and strong laser focusing capability to realize high precision marking.

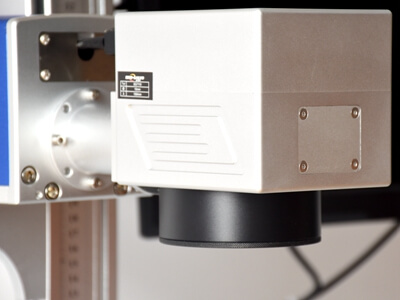

Sino-galvo digital scanning head
- Famous Sino-galvo digital scanning head, which a max speed reaching 8000mm/s, which ensures stability and efficiency and meets industrial marking requirements.
- High sensativity, high precision positioning and strong anti-interference.
JCZ controller card
- Original genuine Beijing JCZ controller card, the I/O port, ensure powerful functions and easy operation.
- High sensativity, fast speed and high accuracy
Singapore Imported Lens
- Singapore imported Wavelength Focus Lens, with strong focusing capability ensures fine quality laser beam.
- High Light Transmission and electro-optical conversion efficiency.
2D XY Working Table
- Operators can put the objects on the working table, which ensures the object is in.

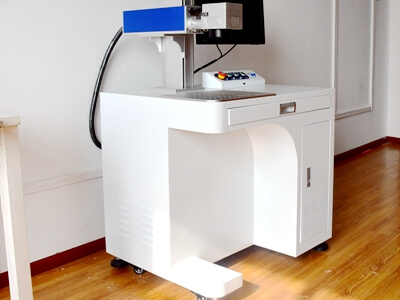

High Quality Aluminum Alloy Machine Box
- Integrated design with aluminum alloy materials, high rigidity,non-deformation and get resty forever.
- Whole machine’s appearance looks modern and beautiful.

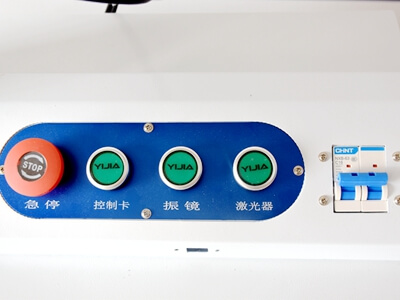

Urgent Stop/Key Switch/Laser Switch
- Urgent Stop: When some error happens during marking, the operator can press the red urgent stop then the machine stop working.
- Key Switch: Machine On
- Laser Switch: Laser Source On

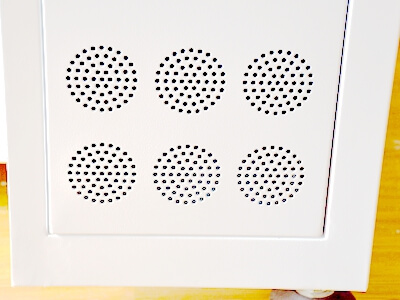

Exhaust Fan/Rotary Port/Foot Pedal Port/I/O signal port
- Even the machine is small size, but it is multifunctional.
Latest Version Ezcad Software
- Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
- Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR
- Win10/Win8/Win7/XP (both 32 and 64 bit all supported
Application
Medical equipment, home appliances, automotive products, household appliances, monitors, hardware tools, electronics, precision bathroom, gift accessories, battery industry, IT industry
Optional Items
Rotary Device (65mm, 80mm, 100mm diameter)
Rotary device can hold the round object and rotate when marking. It realizes rotary working.
Focus Lens(70*70mm, 110*110mm, 175*175mm, 200*200mm, 300*300mm marking size)
The machine needs to equip with a different focus lens if the marking size is different.
Also, marking sizes is different, and power and laser spot size vary.
Working Table
It helps to adjust the focus distance.
XYZ axis can be adjusted up and down flexibly.
Fume Extractor
To protect the environment and human’s health, the fume extractor can clean the fumes and dust occurred when working.
Cutting Fixture
This cutting fixture helps correction the metal plate and fix the thin plate without deformation, especially for gold plate, holographic foil etc.
XY Electric Moving Table
It works when marking on big size material. It can divide the marking job into several times.
| Model | BE-F20D |
| Laser source | Raycus brand (IPG, MAX, JPT optional) |
| Laser power | 20W 30W 50W 100W |
| Weave length | 1064 nm |
| Marking area | 70*70mm, 110*110mm, 175*175mm, 220*220mm, 300*300mm |
| Laser repetition frequency | 20KHZ-80KHZ |
| Beam quality | 1.5 M² |
| Marking speed | 7000-12000mm/s |
| Marking depth | 0.01-1mm |
| Repetition Precision | 0.01mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2 mm |
| Cooling Style | Air cooling |
| Positioning Way | Double Red Pointer |
| Laser Source Life Span | More than 120,000 hours |
| Control software | JCZ EZCAD |
| Supported Format | Bitmap: BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF Vector: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR |
| Control board | ORIGINAL BJJCZ |
| Operating Voltage | AC220V/50HZ/ or AC110V/60HZ |
| Gross Power | ≤500W |
| Supported Windows | Windows |
| Certificate | ISO, CE, FDA |
| Material can be processed | all metal material and part of non-metal material, such as hard plastic |
| Others | USB cable for connection, U flash disk with software and English manuals and install video. |
| After-sales Service | Three years warranty for the machine.Whole life maintenance. We offer overseas engineering services if needed. We accept users to our factory for free training. |
| Packaging | Standard Export Plywood Box |
| Plug | European/America/UK/International different Plugs |
| Net Weight | 120kgs |
| Gross Package weight | 140kgs |
| Packaging Dimension | 105*70*154cm |
Package and Shipment
| Model | Net Weight | Package Size | Gross Weight | Volume |
| BE-F20D | 120KGS | 105×70×154CM | 140KG | 1.13CBM |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
