Online Flying Co2 Laser Marking Machine for Production Line
| Category: | Co2 Laser Marking Machine |
| Model No.: | BE-C600 |
| Views: | 2500 |
| Rating: | ★★★★★4.8/5 Based on 650 Votes |
| Price Range: | US$1999 – US$4999/set Based on the Features |
| Payment Term: | T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance |
| Leading Time: | 10-15 Days |
| Shipping: | Sea/Train/Truck |
| Warranty Period: | Three Years with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS
It can be 24 hours of continuous work, high stability which can ensure the long time marking .fully automatic onlne marking system, perfect online dynamic and static marking, suitable for different production line and mass production demand. Equipped with high speed scanning vibrating lens and extending focusing system, Widely used in leather, food, beverage, cloth, electronic etc.
Machine Feature:
◆ Equipped with China best quality laser source and high-speed galvanometer scanning system, and dedicated online flying coding control software, it can also meet the online high-speed (continuous dynamic) coding for the production line.
◆ It can mark numbers, texts, symbols, and graphics, such as conformity, production date, and batch number on the products, combined with product traceability system integration.
◆ The extensive equipment performance, competitiveness of working continuously for 24 hours makes it meet the demand of massive on-line industrialized production.
◆ Widely used in many nonmetal materials, Such as eggs, bamboo, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, paper, film, wood, acrylic, plastic, ABS, PP etc.
◆ Do not bring any harm or pollution to human and environment, Laser date coding machine is now providing a modern fashionable and environmentally protective way for in date coding industry.
Parts Introduction
Fiber Laser Source
- American brand Synrad, Coherent or Top China brand Davi as optional choices.
- Stable and Fine laser beam, lifetime could reach 20000-30000 hours
LCD Touch Screen
- Professional Marking System for Batch Code and Production Setting
- With Colorful Touch Screen, the marking speed, frequency and power can be adjustable directly on it.
Control System
- Top bran Beijing Ezcad control system with stable performance and high reliability,shield-ulilizing parts of complex functions, ensure high stability, which support online flying marking on production line.

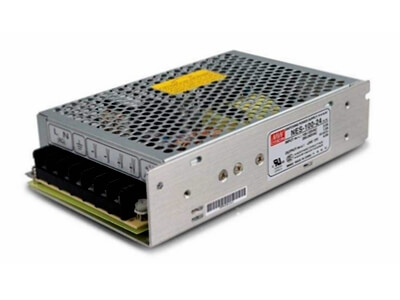

Switching Power Supply
- Adopt Taiwan Meanwell power supply, small compact size, multi-protection, stable performance, professional technology and long lifetime.
- 100% original and genuine.
Focal Adjustment
- Foldable handle, sturdy and durable.
- The height of the focal distance can be adjusted freely by turning the handle on the top as need.
Production Line Transmitting System
- Adopt stainless steel body and high quality thicken durable conveyor belt, high preformance motor which ensure continuous running with full energy.
- Integrated laser marking with transfer belt and realize online flying marking.
Machine Frame Holder
- Strong Cross design to hold the upper laser parts,4 rotation wheels for 360 degree movement, light weight, easy to carry.
Digital Galvanometer Scanning Head
- Fast speed adbility <0.7ms
- 8x beam expander, Realize high speed marking and high precision.
- High sensativity, high positioning and strong anti-interference.
Focus Mirror Lens
- Singapore imported Wavelength Focus Lens, with strong focusing capability ensures fine quality laser beam.
- High Light Transmission and electro-optical conversion efficiency.
Red Light Pointer
- Adopt red pointer for high precision position
- International quality standard and high brightness.
Application
Online Co2 laser marking machine is mainly used in pharmaceutical, personal care products, tobacco, food and beverage packaging, wine, dairy products, clothing label, leather, electronic components, building materials, chemical products, metal products and other signs in the field of production and expiry date, batch number, frequency, business name, trademark and logo graphics etc. and text.
Optional Items
USA Imported Metal Laser Device Synrad or Coherent
Conveyor Belt System for Continuous Marking
Meter Counter for Pipe Cable Marking
Solid Fume Purifier
| Type | BE-C600 | ||
| Laser Power | 30W | 55W | 70W |
| Laser Tube Type | Metal Tube | ||
| Laser Tube Brand | Chinese Top Brand DAVI, American Coherent, Synrad | ||
| Life Time of Laser Tube | Lifetime >20000 hours Can be re-charged after used up |
||
| Laser Beam Quality | Excellent Beam Quality | ||
| Cooling Method | Air Cooling | ||
| Standard Working Area | 110mm×110 mm | ||
| Optional Working Area | 70mm×70mm,175mm×175mm 200×200mm,300×300mm(Optional) | ||
| Marking Speed | ≤12000mm/s, the actual marking speed depends on the material | ||
| Repeated Accuracy | 0.003mm | ||
| Laser Wavelength | 10.6 um | ||
| Minimum Line Width | 0.015mm | ||
| Power Supply | 220V/50HZ/1-PH or 110v/60HZ/1PH | ||
| Support Format | PLT, BMP, DXF, JPG, TIF, AI etc | ||
| Marking Content | Text information, variable information. Serial numbers, batch numbers, QR codes, logos and graphic images, unlimited print lines and font sizes | ||
| Communication Port | Ethernet, TCP/IP, RS232 encoder and sensor inputs | ||
| Running Temperature | External temperature 0-40°C (32-105°F), humidity 10%-90%, non-condensing | ||
Package and Shipment
| Model | Package Size | Gross Weight |
| BE-C600 | 114cm×92cm×74cm, 0.78CBM | 150KG |
 |
 |
 |
| Inside layer is covered by thickening plastic film and fastened. | Middle Layer wrapped by thick sponge foam to avoid shaking on the way. | Outer layer packed by professional export thick wood craftcase. |
-
