Precision Small Scale Fiber Laser Metal Cutting Machine
| Category: | Fiber Metal Laser Cutting Machine |
| Model No.: | BE-FM-1390S |
| Views: | 4800 |
| Rating: | ★★★★★4.9/5 Based on 4600 Votes |
| Price Range: | US$12,000 – US$30,000/set Based on the Features |
| Payment Term: | T/T Bank Transfer |
| Leading Time: | 30-45 Days |
| Shipping: | Sea Shipment |
| Warranty Period: | 36 Months for Machine and 24 Months for Fiber Laser Device with Lifelong Free Service |
- PRODUCT DETAILS
- TECHNICAL SPECIFICATIONS
- CUSTOMER TESTIMONIALS

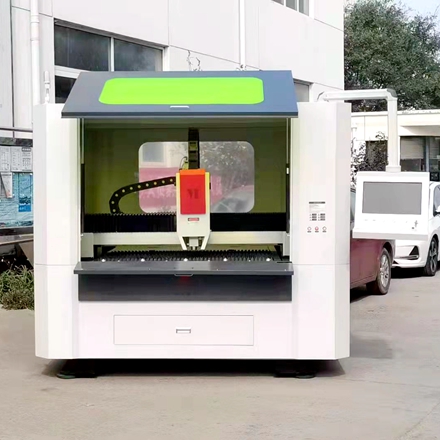

Precision small size fiber metal laser cutting machine with high processing precision, suitable for processing gold and silver jewelry, precision instruments and electronic communication equipment.with small compact size which can help customer save much space and shipping freight.
STANDARD COMPONENTS
◆ CYPCUT®FSCUT2000 CNC Control System
◆ Fuji®High Dynamic EtherCAT servo drive
◆ BSTLASER®Dynamic System 4.0:1.5g Acceleration
◆ BSTLASER@Fast Piercing 2.0:Ultra Perforation
◆ Automatic Table Exchanger 1390 (Optional 6060,6040)
◆ Smoke Extraction Fan System
◆ Fiber Laser Source Raycus 1000w 1500w 2000w 3000w
◆ Class IV safety system and CE marking
◆ CYPCUT@Embedded Pcs: Industrial PCs with directly integrated I/O level
◆ Hiwin@High performance and high accuracy rack and pinion system
Metal Cutting Capacity
| Laser Power | 1000W | 1500W | 2000W | |
| Nominal power | kw | 1 | 1.5 | 2 |
| Power requirement | kw | 7 | 7 | 8 |
| Wavelength | nm | 1074 | 1074 | 1074 |
| Carbon steel | mm | 10 | 16 | 20 |
| Stainless steel | mm | 5 | 6 | 8 |
| Aluminum Alloys | mm | 3 | 4 | 6 |
| Brass | mm | 2 | 2.5 | 5 |
Machine Feature：
◆ The machinery structure adopts industrial-use grade heavy-loading base design. All components are 100% assured top superior quality standard, original and genuine. There are subject for return if found fake.
◆ The transmission system adopts a bridge gantry type middle drive structure, double rack servo drive, and high inertia high torque Japan Fuji servo motors. Taiwan high precision rack and reducer’s max acceleration can reach 0.8G, which ensures high speed and high precision operation.
◆ The overall machine body is built on a thicker cast iron structure and an entire cast aluminum gantry. The strong base has been processed through milling and secondary annealing to effectively eliminate stress.
◆ It adopts world famous superior quality fiber laser generator and high precision laser cutting head with auto-focusing. Fiber laser generator lifespan over 10 years, almost no consumables and free of maintenance.
◆ High performance laser cutting control system with full closed loop control
◆ Z-axis precision industrial linear module system
◆ Independent control cabinet, industrial machine tool foot and thick towline cable.
◆ European electrical standard design and France brand Electric components
Parts Introduction
Machine Body
- Adopting heavy-duty square tube welding structure with thickness of 8mm and reasonable structural design.
- CNC machining, milling three times.
- The first pass is roughing and leveling, the second pass is fine milling and the third pass is finish milling.
- The machine body can ensure stability and non-deformation for 50 years, and has the characteristics of stable structure, good rigidity and high dynamic response. The integrated cast aluminum gantry ensures high speed and high balance performance.
Cast Aluminum Beam
The integrated cast aluminum gantry ensures high speed and high balance performance, with light weight, good dynamic response, faster acceleration, better comprehensive cutting effect.

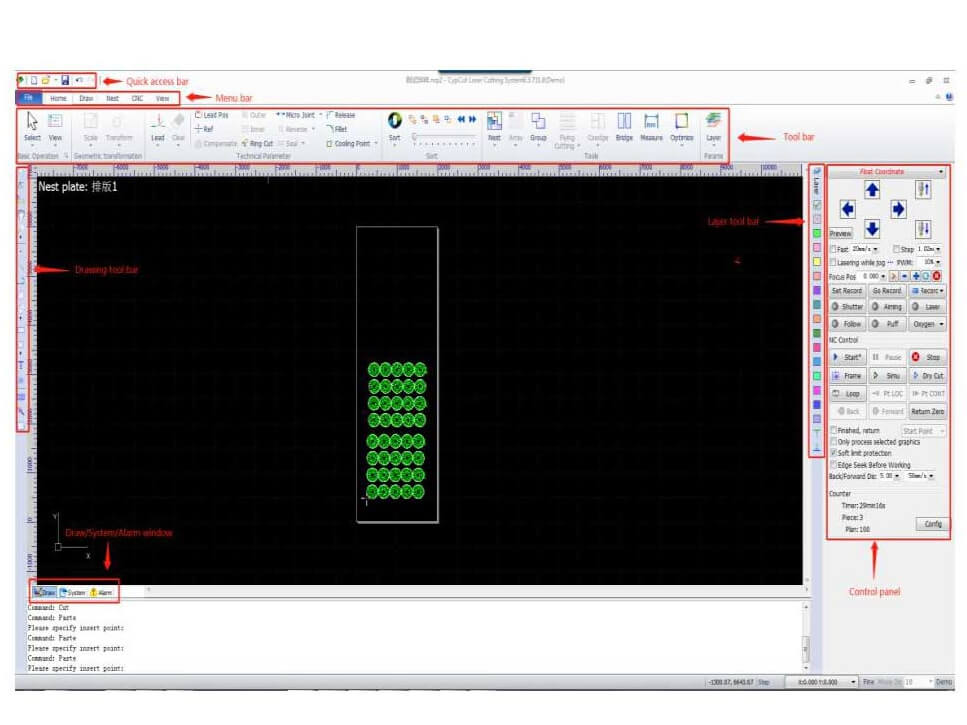

FSCUT2000S Cypcut Control System
FSCUT2000S medium power laser cutting system is a full-solution open-loop control system specially designed for sheet metal fabricaton industry, with features of easy to install and adjust, excellent performance and fully integrated solutions, it is the upgrade version from FSCUT2000C.
Transmission System

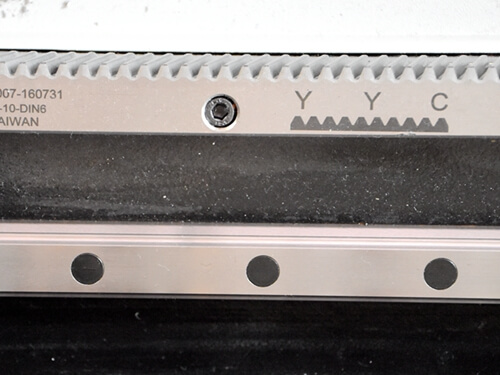

- Taiwan YYC grinding grade rack& Taiwan PMI/Hiwin high precision linear square track (Original Genuine)
- It ensures high cutting speed with extremely precision position and long service life.

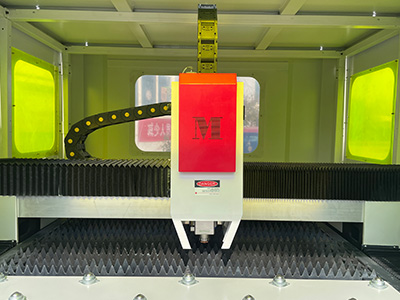

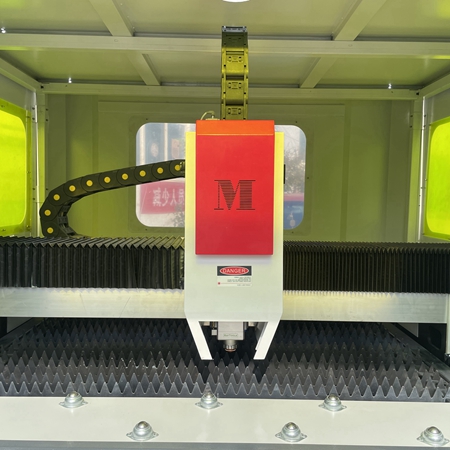

Auto Focusing Laser Cutting Head-Raytools Swiss
- Germany technology high precision cutting head with non-contact sensing automatic following system.
- The minimum cutting gap can be <0.1mm.
- It directly eliminates the influence of the unevenness of the sheet on the cutting quality.

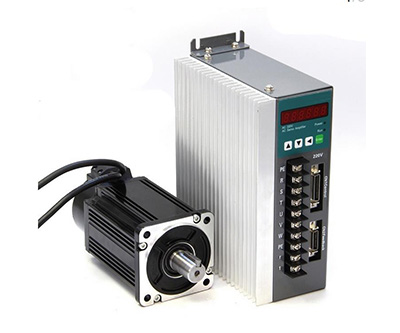

Servo Motors
- Original Japan AC Servo Motor with Driver Σ-7 series.
- Imported servo system ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop, control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance

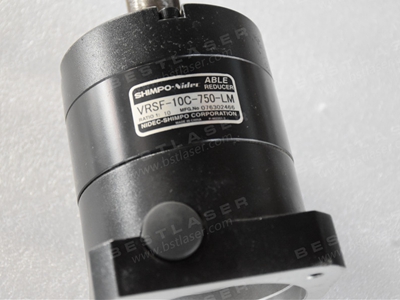

Reducer
- Japan Simbo reducer
- Flange output
- Accuracy and stability life are more than 10 of the shaft output
- Grade 3 accuracy
Cooling System
- Top China Brand S&A CWFL series with variety of alarm protection functions.
- It has two working modes of constant temperature and intelligent temperature regulation.
Application

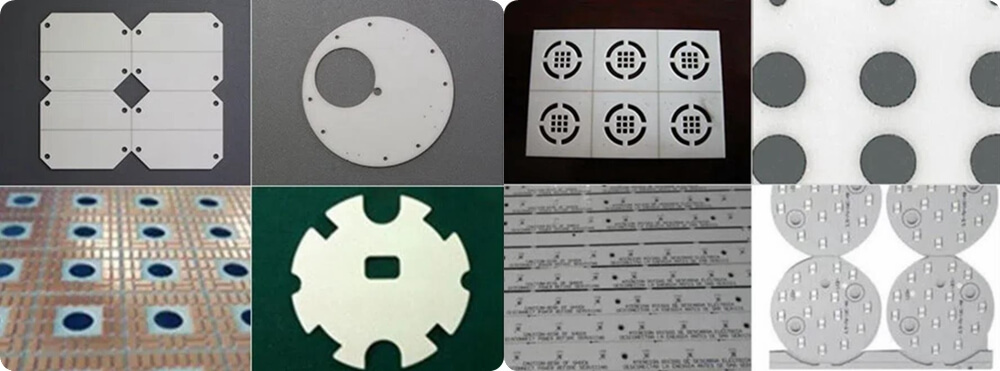

It can cut a variety of metal plates, ceramics, pipes, and is mainly suitable for fast cutting of stainless steel, carbon steel, manganese steel, copper plate, aluminum plate, galvanized plate, various alloy plates, rare metals and other materials.
Covered industries: sheet metal, jewelry, glasses, machinery and equipment, lighting, Digital products, electronic components, computer accessories, instrumentation, precision equipment, auto parts, craft gifts, etc. Chemical industry.
Optional Items

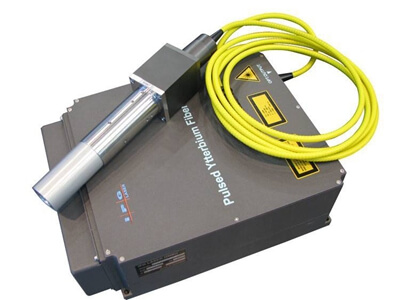

World Top Brand IPG Fiber Laser Device (High Configuration)
Economic China Made Brand Max Fiber Laser Device (1000w-3000w)
Economical cutting methods which needs air compressor +dryer filter usually for cutting thin metal below 2mm.
| Model | BE-FM-1390S | BE-FM-6060S | BE-FM-6040S |
| Working Size | 1300×900mm | 600×600mm | 600×400mm |
| Laser Power | 1000w 1500w 2000w | ||
| Laser Source | Raycus (Optional: Max/Reci/IPG) | ||
| Laser Technology | Germany Technology | ||
| Optional Size | 4000×1500mm/6000×1500mm/4000×2000mm/6000×2000mm | ||
| Max. Cutting Speed | 30-50 Meters / Min (up to materials) | ||
| Max. Location speed | 60m/min | ||
| Laser wavelength | 1070nm | ||
| Minimum line width | ≤0.1mm | ||
| X/Y Location Accuracy | 0.03mm | ||
| Re-location precision | ±0.02mm | ||
| Max Acceleration | 0.8G | ||
| Max. moving speed | 100m/min | ||
| Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc | ||
| Power demand | 3 PHASE AC 380V 50HZ/60HZ | ||
| Cooling Way | Water Cooling | ||
| Worktable max. load | 2000KGS | ||
| Transmission Method | gantry type double rack servo drive | ||
| Table-driven system | Japanese Imported Servo Motor & Driving System | ||
| Focus Method | Following and Automatic Adjust Focus | ||
| Control software | Cyprus/NC Studio | ||
| Working Environment Temperature | 0℃～45℃ | ||
| Working Environment Humidity | 5%～95% non-condensing | ||

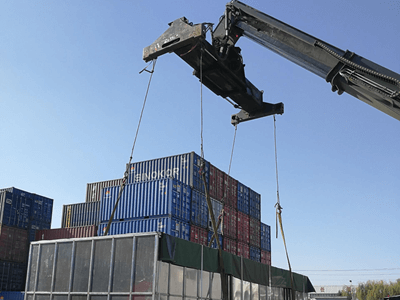

Package and Shipment
| Model | Package Size | Gross Weight |
| BE-FM-1390S | 240cm×227cm×212cm, 11.549CBM | 2000KG |
 |
 |
 |
| Inside layer is covered by thickening plastic bag and foam for waterproof. | Compound Wooden cases which comply with Export Package Standard | Send to the named sea port and load in the container |
-
