Stainless Steel Aluminum Fiber Handheld Laser Cutting Cleaning Welding Machine

Stainless Steel Laser Cutting Cleaning Welding Machine

Category	Auto Laser Welding Machine
Model No.	BE-WF1000E
Views	59800
Rating	★★★★★4.9/5 Based on 1000 Votes
Price Range	US$3999-US$7599/set
Payment Term	T/T Bank Transfer, Western Union, Paypal, Alibaba Trade Assurance
Production Time	5-7 Days
Shipping	Air/Sea/Train/Truck
Warranty Period	Two Years with Lifelong Free Service

Yes! I am Interested

PRODUCT DETAILS
TECHNICAL SPECIFICATIONS
CUSTOMER TESTIMONIALS

The working mode of the handheld optical fiber laser welding machine is hand-held welding, which replacing the previously fixed optical path with a hand-held welding gun, flexible, convenient and can do remote welding.

It is mainly used for long distance laser welding and large work pieces. During welding, the heat affected area is small, which will not cause deformation, blackening and pores on the back. Moreover, the welding is firm.

Good Features

◆ Easy to learn, no need much skills and saving expensive technical labor costs!

◆ Speed 3-8 times than traditional argon welders. Smooth welding, no need after treatment. Light welding gun, high efficiency and donot feel tired after long time use.

◆ No need to move the work piece, just move the hand-held welding gun to weld quickly, with high work efficiency,

◆ Welding smokeless, no strong UV ray, ultra-low noise, no matter the size of the workpiece, no matter how complex, welding can be accurate and meticulous.

Parts Introduction

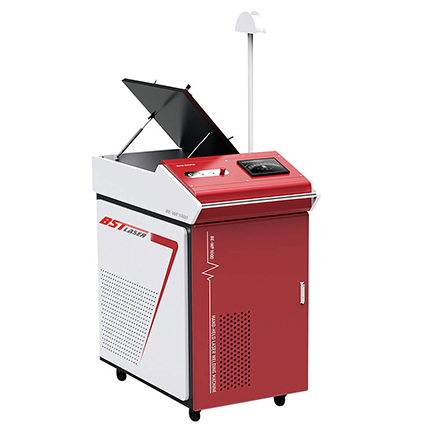

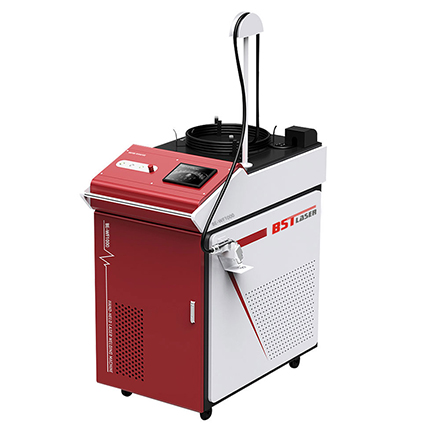

Whole Machine Structure

Adopting industrial integrated and European standard design
Compact and beautiful structure, good beam mode, concentrated energy, stable performance, reliable use, fast welding speed, wide range of suitable welding, long service life etc.
E,T,G,M different options.

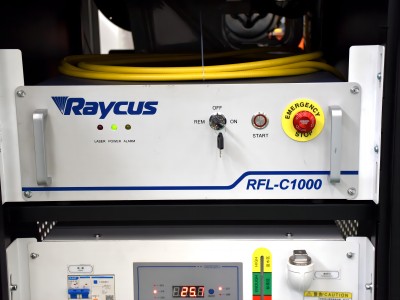

Fiber Laser Source

China’s best No.1 continuous fiber laser source, with powerful laser beam and enable continuous welding, lifetime over 10 years, no consumables and free of maintenance.
Raycus, Max, JPT, BWT, Reci different brands fiber laser source for options.

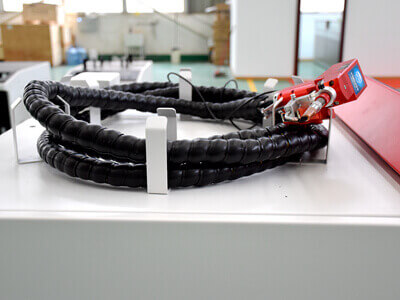

Adopt Famous Brand Fiber Transmission

Equipped with Japan imported fiber cable, fast speed, stable beam transmission, lest consumption and most powerful.
Standard 10m(optional 15m and 20m), which is preferred for long distance welding.

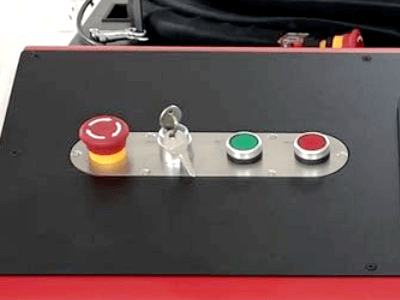

Controlling Button

Separate press buttons for normal operation(Emergency, Key Switch, Laser Button and Power Button) which bring much convenience.
Easy to operate, and eliminate the risks of errors.

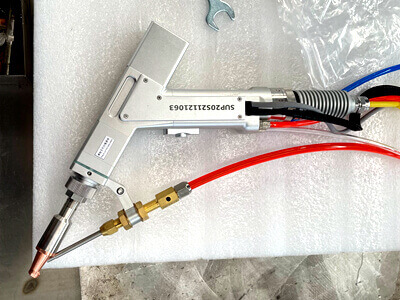

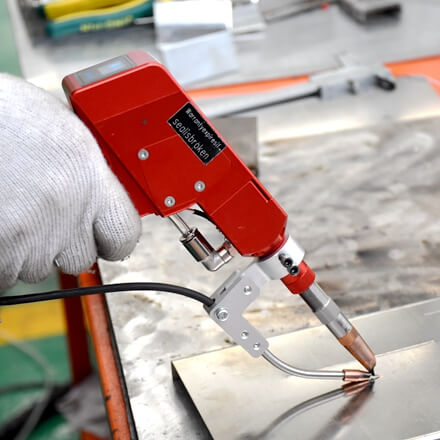

G Design Swing Welding Gun

Weight: 0.8kg, Industrial and Technology
Adjustable Laser Beam Size: 0.5-5mm
Language: Chinese, Chinese, English, Russian, Vietnamese, Korea
6 Wobble Modes(spot, line, double circle, triangle, double triangle)
Double Swing Motors

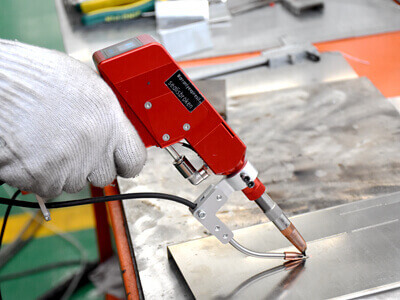

S Design Swing Welding Gun

Multifunctional 3 in 1(Auto Welding+Cutting+Cleaning)
Weight: 0.8kg, Light and Powerful
Adjusted Laser Beam 0.5-6mm
Language: Chinese, English, Korean, Russian, Japanese, French, German, Latin, Traditional Chinese, Italian, Spanish, Romanian, Polish

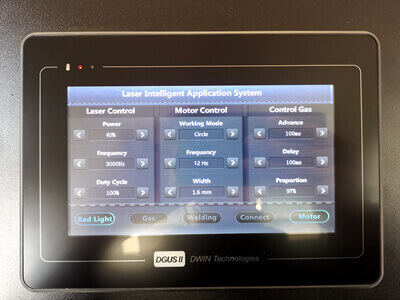

Controlling System

In-built Software& LCD Touch Screen Controller, high sensitivity, support Chinese, English, Russian, Spanish, Korean etc.
User-friendly Interface, simple, truly reflects what you see is what you get.

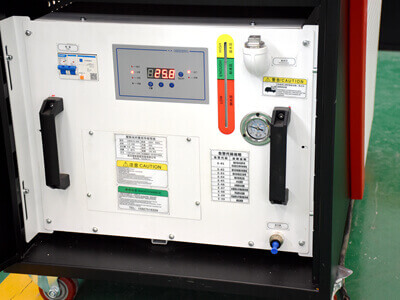

Industrial Water Cooling System

Installed with top China brand Hanli or S&A constant temperature industrial water cooling system which can adjust the temperature automatically
Integrated design which help client save much space and shipping fee
Inner water chiller we use 1.5P water chiller, max water flow can reach 3.3L/minute

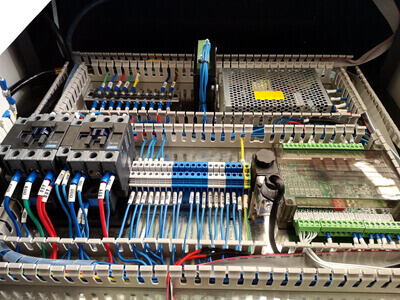

European Standard Electric Parts

The electric control parts with precise design, integrated circuit board making electrical board in modularization and clear layout which can define classification easily.
Separated strong and weak current, no interference and stable.

LEARN MORE

Application

It is widely used in complex and irregular welding processes in cabinets, kitchens, stairs, elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel homes and other industries.

app_1000T_1

Optional Items

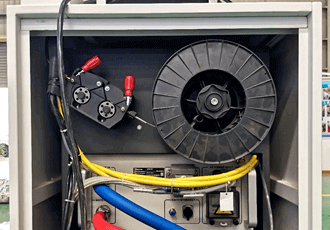

Integrated Auto Wire Feeder System, it’s inserted in the machine which is convenient and compact
Support Wire Size 0.6mm, 0.8mm,1.2mm and 1.6mm

Separated Design, the auto feeder is separated parts with machine which is easy to feed feeding wires
Support Wire Size 6mm, 0.8mm,1.2mm and 1.6mm

Stainless steel wires, carbon steel wires, aluminum wires
Resistant to corrosion, antioxidant, firm welding, smooth feeding and small splash

Model	BE-WF1000E
Laser Running Mode	Continuous/Modulate
Beam Quality	M2<1.2
Power	1000W 1500W 2000W 3000W
Line Width	<5nm
Laser Device	IPG/Raycus/Max/BWT/CAS Laser
Power Consumption	6kw
Spot Size	0.1-5mm
Pulse Width	0.1-20ms
Welding Depth	0.5-3mm
Welding Connector	QBH
Fiber Cable Length	10m (Optional :15m)
Laser Wavelength	1070nm
Position	Red Pointer
Continuous Working	24 hours
Cooling System	Industrial Constant Chiller System
Working Temperature	15-35℃
Input Voltage	AC220V±10%，50HZ/60HZ

1000w Fiber Handheld Maximum Welding Depth
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●
Galvanized Sheet	●	●	●
Iron	●	●	●	●	●
Mild Steel	●	●	●	●	●
Aluminum	●	●
Brass	●	●
1000w Fiber Handheld Welding Penetration Thickness
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●
Galvanized Sheet	●	●
Iron	●	●	●
Mild Steel	●	●	●
Aluminum	●
Brass	●
1500w Fiber Handheld Maximum Welding Depth
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●	●
Galvanized Sheet	●	●	●	●	●
Iron	●	●	●	●	●
Mild Steel	●	●	●	●	●
Aluminum	●	●	●
Brass	●	●
1500w Fiber Handheld Welding Penetration Thickness
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●
Galvanized Sheet	●	●	●
Iron	●	●	●	●
Mild Steel	●	●	●	●
Aluminum	●	●
Brass	●	●
2000w Fiber Handheld Maximum Welding Depth
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●	●	●
Galvanized Sheet	●	●	●	●	●
Iron	●	●	●	●	●	●
Mild Steel	●	●	●	●	●	●
Aluminum	●	●	●	●
Brass	●	●
2000w Fiber Handheld Welding Penetration Thickness
Thickness Materials	1mm	2mm	3mm	4mm	5mm	6mm	8mm	10mm
Stainless Steel	●	●	●	●
Galvanized Sheet	●	●	●	●
Iron	●	●	●	●
Mild Steel	●	●	●	●
Aluminum	●	●	●
Brass	●	●

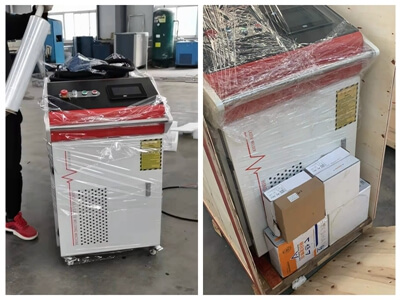

Package and Shipment

Model	Package Size	Gross Weight
BE-WF1000E	1.2m×0.73m×1.27m, 1.13CBM	260KG


Inside layer is covered by thickening plastic film and fastened.	Middle Layer wrapped by thick sponge foam to avoid shaking on the way.	Outer layer packed by professional export thick wood craftcase.
